Description

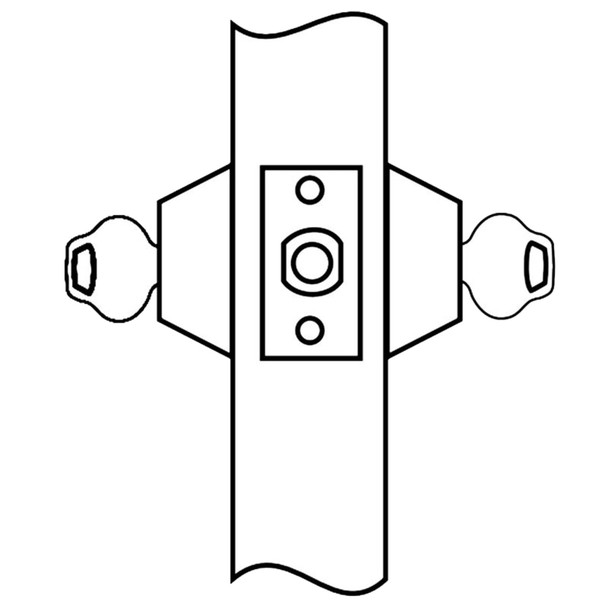

The Corbin Russwin DL3212 is a Grade 1 certified cylindrical deadlock engineered for high-security commercial and institutional applications. It features a solid steel deadbolt with a hardened, free-spinning steel pin insert and a 1-inch throw, delivering reliable access control and tamper resistance for any facility requiring heavy-duty door security.
The DL3212 installs into standard 2-3/4-inch backset 161 door prep and fits 1-3/4-inch door thickness as standard; optional backsets and thicknesses are available. It is UL listed for fire-rated doors and supports master keying and security key control. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for expert help selecting the right cylinder, finish, and keying configuration for your project.
Specifications
- Grade: ANSI 156.5 Grade 1
- Deadbolt: Solid steel, 1 inch throw, hardened free-spinning steel pin insert
- Standard Door Thickness: 1-3/4 inches (44mm)
- Standard Backset: 2-3/4 inches (70mm); Optional: 2-3/8 inches (60mm)
- Front Plate: Brass or stainless steel, 2-1/4 inches (57mm) x 1-1/8 inches (29mm)
- Handing: Non-handed
- Cylinder: Brass, 6-pin, L4 keyway, 0-bitted standard; security cylinder optional
- Strike: Standard 2-3/4 inches (70mm) x 1-1/8 inches (29mm); optional strikes available
- UL Listed: Fire-rated door use
- Keying: Two nickel silver keys standard; master keying available
- Warranty: One-year limited
