Description

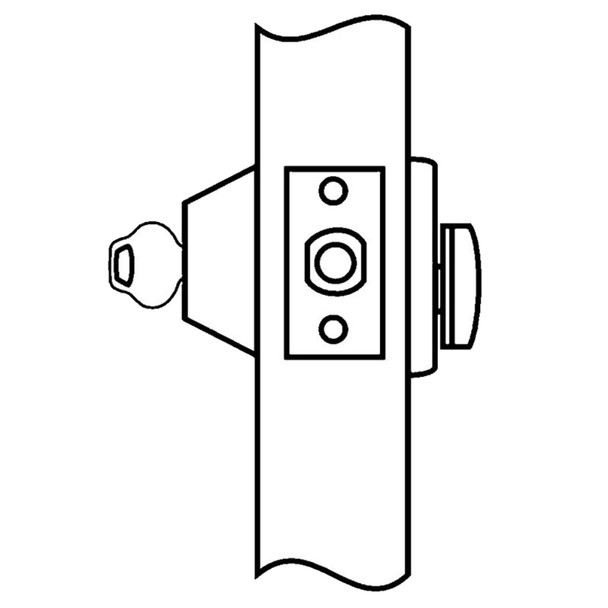

The Corbin Russwin DL3213 is a heavy-duty Grade 1 cylindrical deadlock engineered for high-security commercial and institutional applications. Featuring a solid steel deadbolt with hardened, free-spinning steel pin insert and 1-inch throw, it delivers superior security and durability for doors requiring maximum protection and compliance with ANSI 156.5 Grade 1 standards.
This deadlock installs into standard 161 door prep and accommodates 1-3/4-inch door thickness (additional thicknesses available). It ships with a brass 6-pin L4 keyway cylinder and includes two nickel silver keys; master keying, security cylinders, and pyramid cylinders are optional. As an authorized Corbin Russwin dealer, E.D. Locks provides expert product matching and installation guidance. Contact sales@edlocks.com or call 1-877-207-6067 for specification confirmation and keying assistance.
Specifications
- Grade: ANSI 156.5 Grade 1
- Deadbolt Type: Solid steel with hardened, free-spinning steel pin insert
- Throw: 1 inch
- Door Thickness (Standard): 1-3/4 inches (44mm)
- Backset (Standard): 2-3/4 inches (70mm); Optional: 2-3/8 inches (60mm)
- Front Plate (Standard): Brass or stainless steel, 2-1/4 inches (57mm) x 1-1/8 inches (29mm)
- Cylinder (Standard): Brass, 6-pin, L4 keyway, 0-bitted
- Strike (Standard): 2-3/4 inches (70mm) x 1-1/8 inches (29mm)
- Handing: Non-handed
- Door Prep: Standard 161
- UL Listed: For use with fire-rated doors
- Keys Included: Two nickel silver
- Warranty: One-year limited
