Description

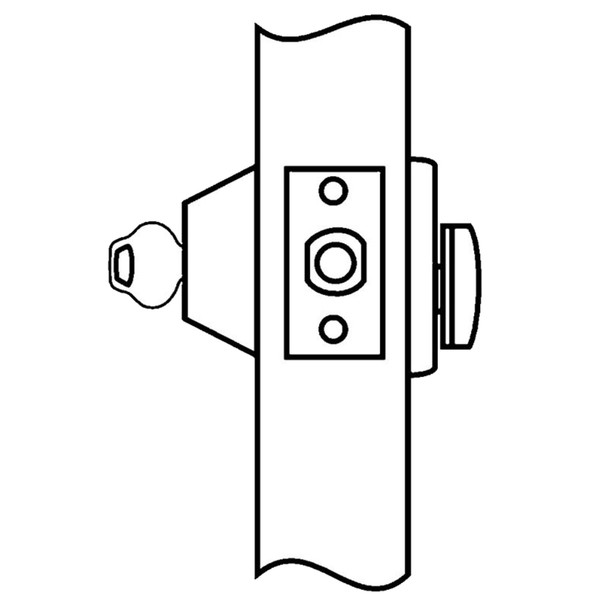

The Corbin Russwin DL3213 is a Grade 1 cylindrical deadlock built for high-security applications requiring ANSI 156.5 certification. Featuring a solid steel deadbolt with hardened, free-spinning steel pin insert and 1-inch throw, it suits commercial doors, institutional facilities, and any space demanding maximum durability and tamper resistance.
Standard 1-3/4-inch door thickness; 2-3/4-inch and 2-3/8-inch backsets available. Prep to standard 161 specification. UL listed for fire-rated doors. As an authorized Corbin Russwin dealer, E.D. Locks provides expert installation guidance and keying support. Contact sales@edlocks.com or 1-877-207-6067 for compatibility questions or to place your order.
Specifications
- Brand: Corbin Russwin
- Model: DL3213
- Finish: 612 (Satin Bronze)
- Cylinder: CL7
- Certification: ANSI 156.5 Grade 1
- Deadbolt: Solid steel with hardened, free-spinning steel pin insert
- Throw: 1 inch
- Standard Door Thickness: 1-3/4 inch
- Backset Options: 2-3/4 inch or 2-3/8 inch
- Door Prep: Standard 161
- Cylinders: Standard or Pyramid optional
- UL Listed: Fire-rated doors
