Description

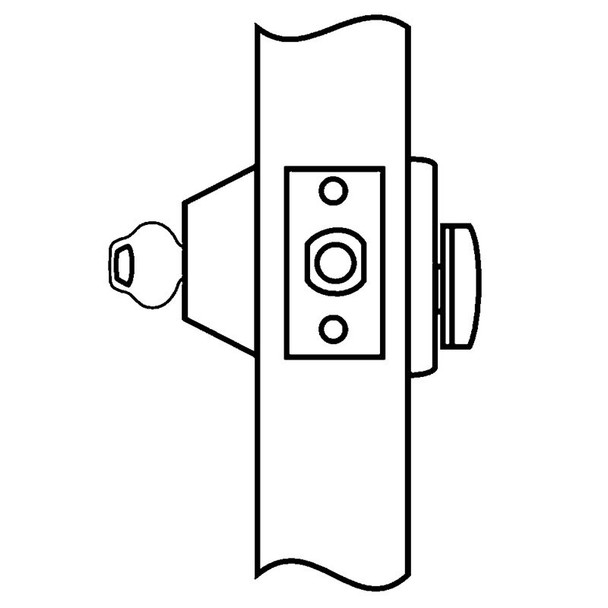

The Corbin Russwin DL3213 is a Grade 1 cylindrical deadlock engineered for high-security applications. It features a solid steel deadbolt with a hardened, free-spinning steel pin insert and a 1-inch throw. Ideal for commercial facilities and demanding environments, this non-handed lock meets ANSI 156.5 Grade 1 standards and is UL-listed for fire-rated doors.
Standard 1-3/4-inch door thickness with optional thicknesses available; fits 2-3/4-inch backset (2-3/8-inch optional) and standard 161 door prep. Keying options include master keying, security, and concealed key control. As an authorized Corbin Russwin dealer, E.D. Locks provides expert specification guidance and keying support. Contact sales@edlocks.com or call 1-877-207-6067 for installation questions or custom configurations.
Specifications
- Grade: ANSI 156.5 Grade 1
- Deadbolt: 1-inch throw, solid steel with hardened, free-spinning steel pin insert
- Door Thickness: 1-3/4 inches standard; optional thicknesses available
- Backset: 2-3/4 inches standard; 2-3/8 inches optional
- Front: Brass or stainless steel, 2-1/4 inches x 1-1/8 inches (1-inch width optional)
- Cylinder: Brass, 6-pin, L4 keyway, 0-bitted standard; security cylinder optional
- Handing: Non-handed
- Door Prep: Standard 161
- Cylinders: Pyramid cylinders optional
- UL Listed: Fire-rated doors
- Keys: Two nickel silver standard
- Keying: Master keying, security, and concealed key control available
- Warranty: One-year limited
