Description

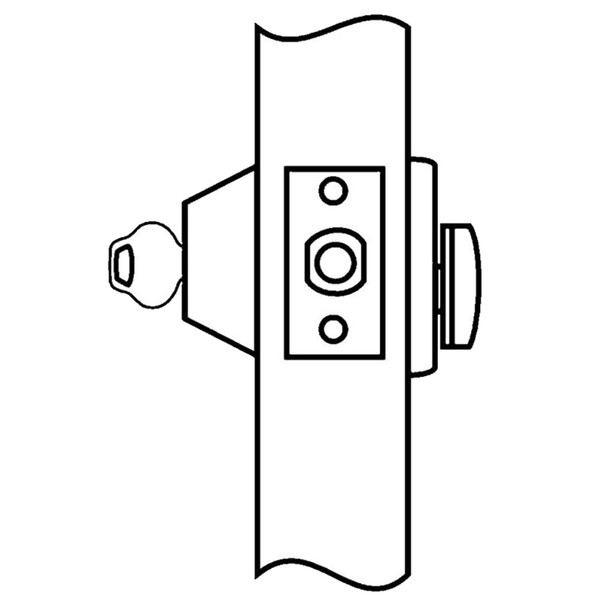

The Corbin Russwin DL3213 625 CL6 is a Grade 1 cylindrical deadlock built for high-security applications. It features a solid steel deadbolt with hardened, free-spinning steel pin insert and 1" throw, ideal for commercial doors and facilities requiring ANSI 156.5 Grade 1 certification and UL fire-rated door compatibility.
This deadlock installs on standard 1-3/4" doors with 2-3/4" backset and 161 door prep. Available in brass or stainless steel fronts with optional security cylinders and master keying. As an authorized Corbin Russwin dealer, E.D. Locks provides expert configuration guidance and keying support. Contact sales@edlocks.com or 1-877-207-6067 to select the right options for your application.
Specifications
- Grade: ANSI 156.5 Grade 1
- Deadbolt: Solid steel, 1" throw
- Door Thickness: 1-3/4" standard (44mm); optional thicknesses available
- Backset: 2-3/4" standard (70mm); optional 2-3/8" (60mm)
- Front: Brass or stainless steel, 2-1/4" x 1-1/8" (57mm x 29mm); optional 1" width
- Cylinder: Brass, 6-pin, L4 keyway, 0-bitted standard; security cylinder optional
- Strike: 2-3/4" x 1-1/8" (70mm x 29mm) standard; optional strikes and wrought boxes available
- Handing: Non-handed
- Keys: Two nickel silver standard
- Keying: Master keying, construction master keying, security visual key control, and concealed key control available
- Certification: UL listed for fire-rated doors
- Warranty: One-year limited
