Description

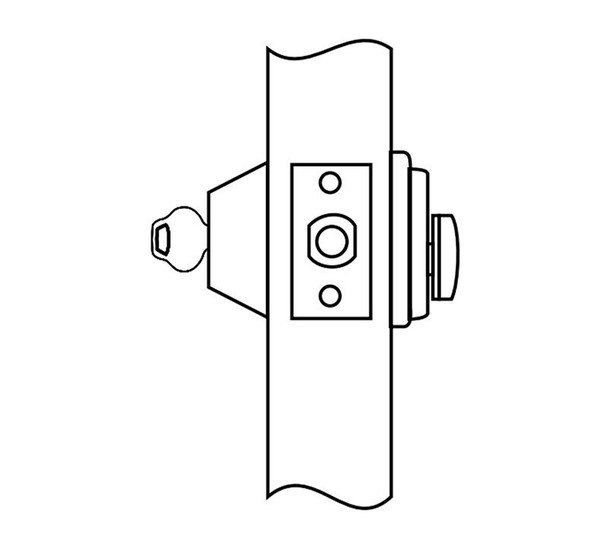

The Corbin Russwin DL3217 is a heavy-duty cylindrical deadlock engineered for commercial and institutional doors requiring Grade 1 security. Featuring a solid steel deadbolt with hardened, free-spinning steel pin insert and a 1-inch throw, it solves the need for durable, reliable perimeter security on standard 1-3/4-inch doors.
The DL3217 installs to standard 161 door prep with your choice of 2-3/4-inch or 2-3/8-inch backsets. UL-listed for fire-rated doors and available with master keying options, it delivers institutional-grade performance. Contact an E.D. Locks authorized specialist at sales@edlocks.com or 1-877-207-6067 for keying configuration, cylinder upgrades, and application guidance.
Specifications
- Security Grade: ANSI 156.5 Grade 1
- Deadbolt: 1-inch throw, solid steel with hardened free-spinning pin insert
- Door Thickness: Standard 1-3/4 inches (44 mm); optional thicknesses available
- Backset: Standard 2-3/4 inches (70 mm); optional 2-3/8 inches (60 mm)
- Front Plate: Brass or stainless steel, 2-1/4 inches x 1-1/8 inches (optional 1-inch width)
- Cylinder: Standard 6-pin, L4 keyway, 0-bitted brass; security cylinder optional
- Handing: Non-handed
- Keys: Two nickel silver standard
- Keying: Master keying, construction master keying, security and concealed key control available
- Strike: Standard 2-3/4 inches x 1-1/8 inches; optional strikes and wrought boxes available
- UL Listed: Fire-rated door compatible
- Warranty: One-year limited
