Description

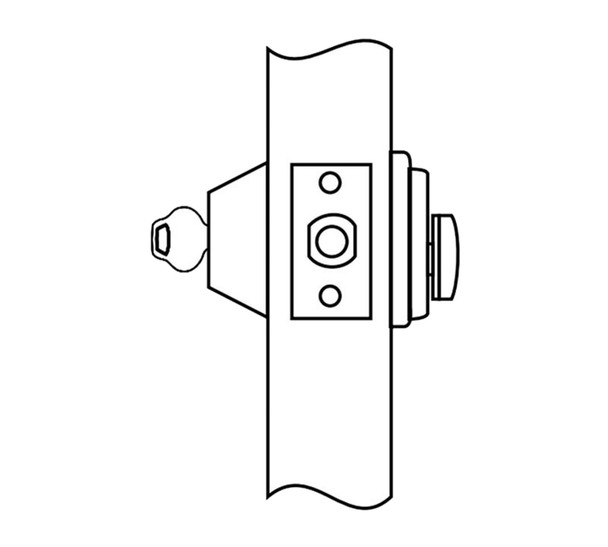

The Corbin Russwin DL3217 is a Grade 1 certified cylindrical deadlock built for high-security applications requiring maximum durability. Featuring a solid steel deadbolt with hardened, free-spinning steel pin insert and 1" throw, this deadlock solves the need for reliable perimeter security on commercial and institutional doors. Its non-handed design works on any door orientation, making it ideal for multi-building facilities and retrofit projects.
The DL3217 installs in standard 161 door prep with 2-3/4" or 2-3/8" backsets, fitting doors 1-3/4" thick (other thicknesses available). UL listed for fire-rated doors, it ships keyed to your specifications with master keying options. As an authorized Corbin Russwin dealer, E.D. Locks provides expert configuration guidance and free shipping on orders over $450. Contact sales@edlocks.com or 1-877-207-6067 for application support.
Specifications
- Grade: 1 (ANSI/BHMA 156.5)
- Deadbolt Throw: 1"
- Door Thickness Standard: 1-3/4" (44mm); optional thicknesses available
- Backset Standard: 2-3/4" (70mm); optional 2-3/8" (60mm)
- Front: Brass or stainless steel, 2-1/4" x 1-1/8" (optional 1" width)
- Strike: 2-3/4" x 1-1/8" standard; optional strikes and wrought boxes available
- Cylinder: 6-pin, L4 keyway, brass standard; security cylinder optional
- Handing: Non-handed
- Door Prep: Standard 161
- Keys: Two nickel silver standard
- Keying: Master keying, construction master keying, visual and concealed key control available
- UL Listed: Fire-rated door compatible
- Warranty: One-year limited
