Description

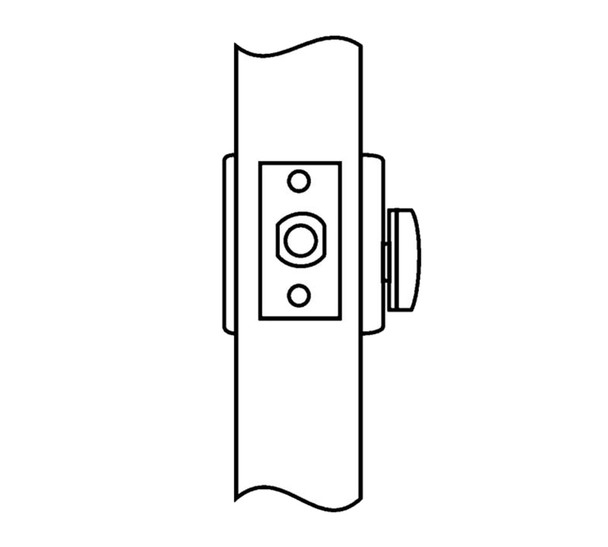

The Corbin Russwin DL3260 605 is a Grade 1 certified cylindrical deadlock built for commercial and institutional doors requiring maximum security. Features a solid steel deadbolt with hardened, free-spinning steel pin insert and 1 inch throw. Ideal for applications demanding durable, reliable access control and theft prevention.
Standard 1-3/4 inch door thickness; 2-3/4 inch backset; fits 161 door prep. UL listed for fire-rated doors. Optional backsets, fronts, and security cylinders available. Master keying and visual key control options supported. Contact an E.D. Locks authorized dealer at sales@edlocks.com or 1-877-207-6067 for expert guidance on specification and keying configuration.
Specifications
- Grade: 1 (ANSI 156.5)
- Deadbolt: Solid steel, 1 inch throw
- Door Thickness Standard: 1-3/4 inch (44mm)
- Backset Standard: 2-3/4 inch (70mm); Optional: 2-3/8 inch (60mm)
- Front: Brass or stainless steel, 2-1/4 inch x 1-1/8 inch
- Cylinder: Brass, 6-pin, L4 keyway, 0-bitted
- Strike: 2-3/4 inch x 1-1/8 inch
- Handing: Non-handed
- Keys: Two nickel silver standard
- UL Listed: Fire-rated doors
- Keying: Master keying, construction master keying, security, and concealed key control available
- Warranty: One-year limited
