Description

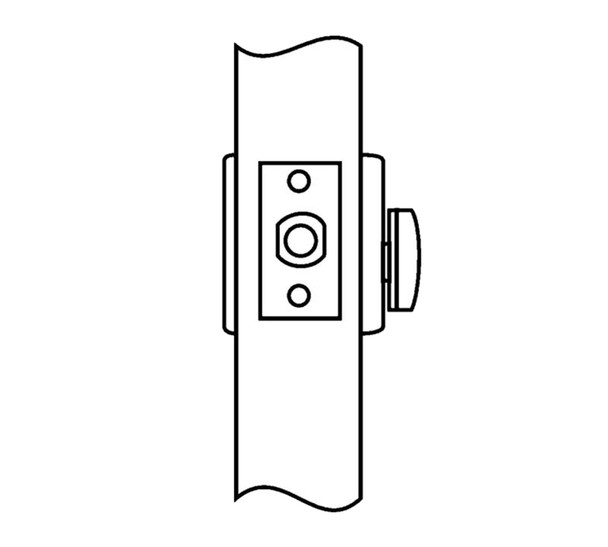

The Corbin Russwin DL3260 625 is a Grade 1 cylindrical deadlock built for high-security applications. Featuring a solid steel deadbolt with hardened, free-spinning steel pin insert and 1" throw, it's ideal for commercial doors and facilities requiring certified security. This non-handed lock solves the need for reliable, standardized access control across multiple entry points.
The DL3260 625 fits standard 1-3/4" doors with 2-3/4" backset and standard 161 door prep. UL-listed for fire-rated doors, it supports master keying and security cylinders. As an authorized Corbin Russwin dealer, E.D. Locks provides expert configuration assistance and warranty support. Call 1-877-207-6067 or email sales@edlocks.com for keying options and compatibility questions.
Specifications
- Grade: 1 (ANSI 156.5)
- Deadbolt throw: 1 inch solid steel
- Door thickness standard: 1-3/4" (44mm)
- Backset standard: 2-3/4" (70mm); optional 2-3/8" (60mm)
- Front standard: brass or stainless steel, 2-1/4" x 1-1/8"
- Cylinder: 6-pin L4 keyway, 0-bitted
- Handing: non-handed
- Strike: standard 2-3/4" x 1-1/8"
- UL-listed for fire-rated doors
- Master keying available
- Warranty: one-year limited
