Description

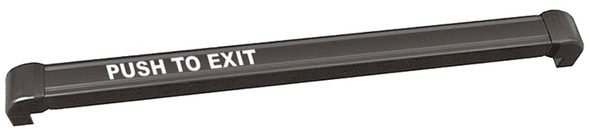

The Securitron DSB-BK-48 is a dual sense bar exit device designed for magnetically locked, non-fire-rated doors on interior metal, aluminum, or wood frames. It solves the need for reliable emergency egress with two independent, redundant switch circuits that trigger release via either 1/8 inch mechanical movement or touch sense technology, meeting all code requirements for no special tools or knowledge.
The DSB-BK-48 is fully field-cuttable for non-standard door widths and includes a 16-foot, 6-conductor cable with armored door cord. It operates on automatic dual-voltage 12 VDC or 24 VDC power and resists electrostatic discharge up to 27,000 volts plus RF and EMI interference. Contact an E.D. Locks authorized specialist at sales@edlocks.com or 1-877-207-6067 for compatibility verification and expert installation guidance.
Specifications
- Dual independent switch circuits for redundant release
- Release triggers: 1/8 inch mechanical movement or touch sense
- Compatible door types: interior metal, aluminum, wood
- Cable included: 16 feet, 22 AWG, 6 conductor with armored cord
- Power: automatic dual-voltage 12 VDC or 24 VDC
- ESD resistance: up to 27,000 volts
- RF/EMI and impact/bounce resistant
- Field-cuttable construction
