Description

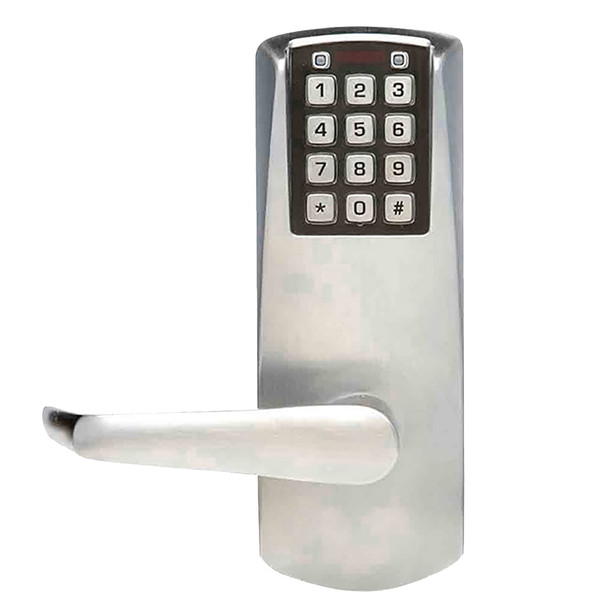

The DormaKaba E2066LL-626-41 E-Plex 2000 is a heavy-duty Grade 1 mortise lock designed for commercial facilities requiring electronic access control without deadbolt or key override. It supports up to 100 access codes and logs 1,000 audit events, making it ideal for offices, schools, and institutional buildings where security and accountability matter.
This satin chrome lockset fits standard mortise preparation with 2¾ inch backset and includes both ANSI strikes. Installation is straightforward, and the non-handed design adapts easily in the field. As an authorized DormaKaba dealer, E.D. Locks provides expert guidance on keying, programming, and compatibility. Contact sales@edlocks.com or call 1-877-207-6067 for free setup advice and fast shipping on orders over $450.
Specifications
- Grade: 1 (ANSI/BHMA)
- Construction: Solid cast exterior housing and levers
- Finish: Satin Chrome
- Mortise Backset: 2¾ inch (70 mm)
- Mortise Latch: ¾ inch (19 mm)
- Mortise Deadbolt: 1 inch (25 mm) optional
- Access Codes: Up to 100
- Audit Events: 1,000
- Minimum Stile Required: 5 inch (127 mm)
- Key-in-Lever Cylinder: Kaba 1539 6-pin, Schlage C Keyway
- Interchangeable Core: Small format (6 or 7-pin)
- Strikes Included: ANSI A115.3 T Strike and A115.2 ASA Strike
- Handing: Non-handed, field-convertible
- Features: No deadbolt, no key override
