Description

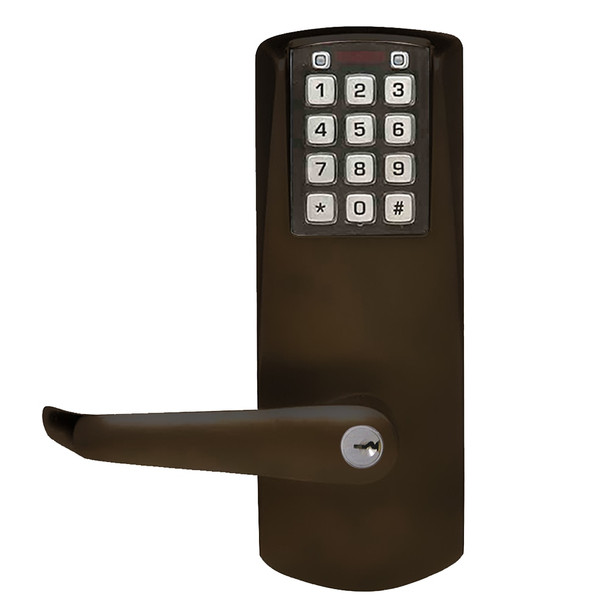

The DormaKaba E2066XSLL-U13-41 E-Plex 2000 is a heavy-duty Grade 1 electronic mortise lock designed for commercial buildings requiring keyless access control. It stores up to 100 access codes and 1,000 audit events, making it ideal for offices, hospitals, and multi-tenant facilities where security and occupant tracking matter.
This mortise lock features a 2¾" backset, ¾" latch, and dark bronze construction, pre-assembled for left-hand installation but field-adjustable to right-hand. It uses a Schlage C keyway cylinder for key-in-lever backup access. As an authorized DormaKaba dealer, E.D. Locks offers expert specification help and free shipping on orders over $450. Contact sales@edlocks.com or call 1-877-207-6067 for compatibility questions or installation guidance.
Specifications
- Grade: 1 (commercial)
- Lock Type: Mortise
- Access Codes: 100
- Audit Events: 1,000
- Backset: 2¾" (70 mm)
- Latch: ¾" (19 mm)
- Deadbolt: Optional 1" (25 mm)
- Keyway: Schlage C
- Cylinder: Kaba 1539 6-pin
- Interchangeable Core: Small format
- Minimum Stile: 5" (127 mm)
- Finish: Dark Bronze
- Handing: Non-handed, pre-assembled left-hand, field-changeable
- Strikes: ANSI A115.3 T-Strike and A115.2 ASA Strike included
