Description

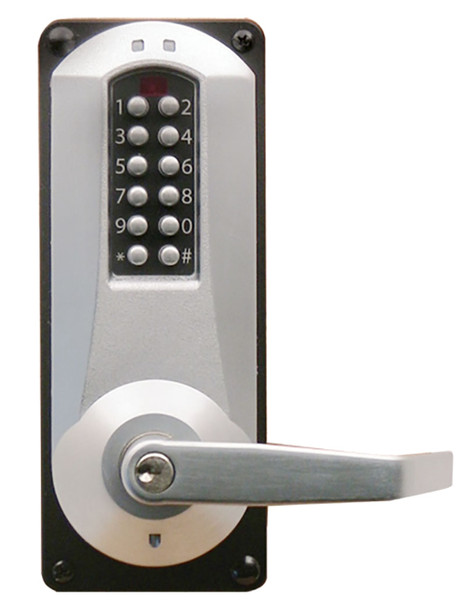

The DormaKaba E-Plex 5086 is an extra heavy-duty electronic mortise lockset designed for high-security entry and egress applications on interior and exterior doors. Supporting up to 100 access codes and 3,000 audit events, it solves the need for keyless access control while maintaining Grade 1 ANSI/BHMA durability and three-hour UL/ULC fire-door rating for demanding commercial environments.
This non-handed mortise lock installs on wood or metal doors with standard four-bolt mounting, requires no wiring, and fits doors 1 5/8 inches to 2 1/8 inches thick with a 2 3/4 inch backset. As an authorized DormaKaba dealer, E.D. Locks provides expert guidance on keying, compatibility with Schlage C keyway overrides, and system setup. Contact our sales team at sales@edlocks.com or 1-877-207-6067 for installation support and technical questions.
Specifications
- Brand: DormaKaba
- Model: E-Plex 5086
- Function: Entry/Egress, Electronic Mortise
- Access Codes: Up to 100
- Audit Events: 3,000
- Finish: Satin Chrome
- Keyway: Schlage C
- Backset: 2 3/4 inch (70 mm)
- Latch: 3/4 inch (19 mm)
- Door Thickness: 1 5/8 inch to 2 1/8 inch (41 mm to 54 mm)
- Minimum Stile Recommended: 5 inch (127 mm)
- Installation: Four bolt, no wiring required
- Door Handing: Non-handed, field-changeable
- Durability Rating: ANSI/BHMA A156.13, Grade 1
- Fire Rating: Three-hour UL/ULC for labeled doors
- Environmental: Indoor/Outdoor approved, -31 degrees F to +151 degrees F operating range
- Warranty: One year from installation date
