Description

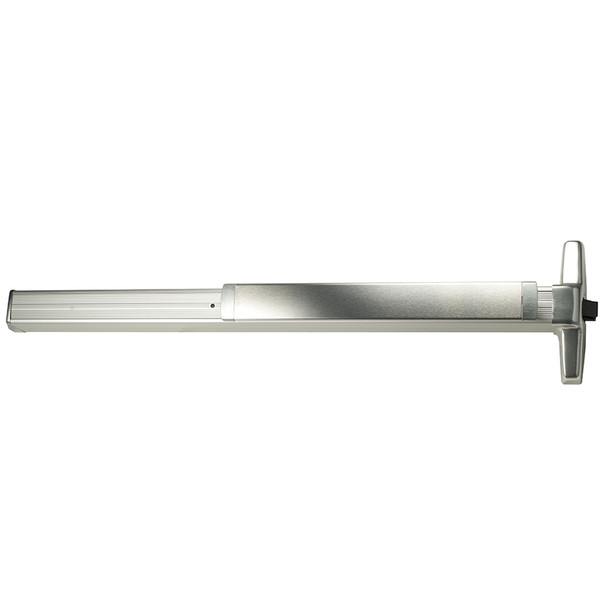

The Von Duprin EL33AEO 3 26D is a UL-listed panic exit device engineered for single and double doors with mullion support. Built to ANSI A156.3:2014 Grade 1 standards, it delivers reliable emergency egress for commercial facilities, schools, hospitals, and high-traffic venues where code compliance and safety are non-negotiable.
This rim-mounted device fits door sizes from 2'4" to 4' and includes a deadlocking latchbolt with 3/4" throw and hex-key dogging as standard. Customize with electric latch retraction, monitor switches, or alarm kits to match your security and access-control needs. As an authorized Von Duprin dealer, E.D. Locks provides expert sizing, finish selection, and installation guidance—contact sales@edlocks.com or call 1-877-207-6067 for personalized support.
Specifications
- Brand: Von Duprin
- Model: EL33AEO 3 26D
- Standard: ANSI A156.3:2014 Grade 1, UL Listed
- Device Type: Rim Exit Device, Non-Handed (except with SS option)
- Compatible Door Sizes: 2'4" to 4' (711mm to 1219mm)
- Centerline Height: 39 13/16" (1011mm) standard; 39 11/16" (1008mm) with mullion
- Center Case: 8 3/16" x 2 13/32" x 1 9/16"
- Mechanism Case: 2 1/4" x 2 1/4"
- Pushbar Projection: 3 13/16" neutral, 3 1/16" depressed
- Latchbolt: Deadlocking, 3/4" throw
- Dogging: Hex key standard; CD (cylinder) and LD (less) options available
- Strike: 1439 Dull Black
- Fasteners: Sex bolts 1 3/4" to 2 1/4" for wood and metal doors
- Electric Options: LX latchbolt monitor, RX/RX2 pushpad monitor, SS signal switch, EL electric latch retraction, ALK alarm kit
- Other Options: PN pneumatic latch retraction, GBK glass bead kit
