Description

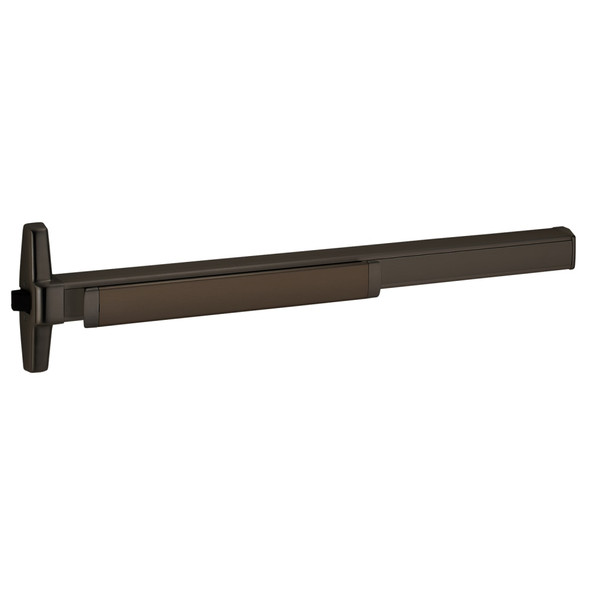

The Von Duprin 35A is a UL-listed rim exit device built to ANSI A156.3-2014 Grade 1 standards for single and double doors with mullion. Its smooth mechanism case and deadlocking latch bolt provide reliable panic exit compliance and security for commercial entrances, fire exits, and high-traffic facilities.
The 35A accommodates door sizes from 2'10" to 4' wide and installs at 39 13/16" from finished floor. Non-handed design simplifies inventory and installation on most applications. Contact our security experts at sales@edlocks.com or 1-877-207-6067 for keying options, trim compatibility, and professional guidance tailored to your door configuration.
Specifications
- Brand: Von Duprin
- Model: 35A
- ANSI Grade: Grade 1 (ANSI A156.3-2014)
- UL Listed: Yes
- Device Length: 3' (36 inches)
- Compatible Door Widths: 2'10" to 4'
- Mechanism Case Finish: Smooth
- Latch Bolt: Deadlocking, 3/4" throw
- Center Case Dimensions: 8 3/16" x 1 9/16" x 2 13/32"
- Mechanism Case Dimensions: 2 1/4" x 2 1/4"
- Pushbar Neutral Projection: 3 13/16"
- Pushbar Depressed Projection: 3 1/16"
- Device Centerline Height: 39 13/16" from finished floor
- Non-Handed: Yes (except with signal switch option)
- Fasteners: 1 3/4" to 2 1/4" wood and metal door SNB included
