Description

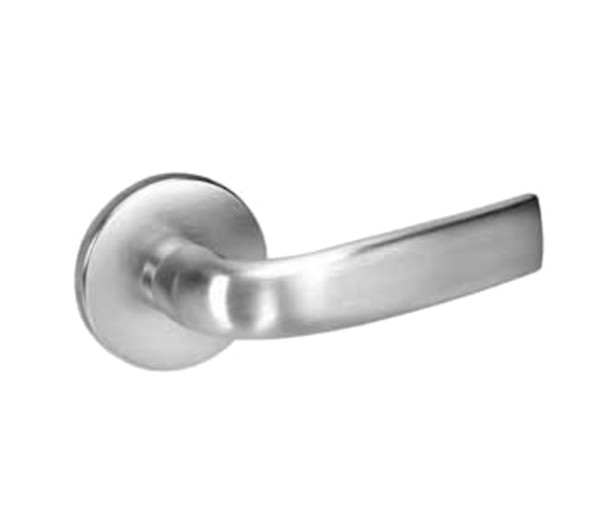

The Yale 8800 Series mortise lock delivers ANSI/BHMA Grade 1 security for commercial doors. Built with reinforced stainless steel deadbolt and heavy-duty vandal-resistant trim, this lock solves durability challenges in high-traffic applications. Field-reversible latchbolt and quick lever handing simplify installation on 1-3/4" standard doors.
Compatible with 6-pin brass cylinders (keyed random, two keys included). UL/cUL fire-rated to 3 hours and windstorm certified. As an authorized Yale dealer, E.D. Locks provides expert guidance on handing, finish selection, and custom configurations. Contact sales@edlocks.com or call 1-877-207-6067 for technical support and fast shipping on this commercial-grade mortise lock.
Specifications
- ANSI/BHMA Certification: A156.13, Series 1000, Grade 1
- UL/cUL Fire Rating: Up to 3 hours
- Backset: 2-3/4"
- Latchbolt: 3/4" stainless steel throw
- Door Thickness: 1-3/4" standard (to 3-1/4" available)
- Cylinders: 6-pin brass, keyed random (7-pin available)
- Strike: 1-1/4" curved lip (reversible)
- Field Reversible: Yes
- Finishes: 17 available
- Warranty: 10 years mechanical
