Description

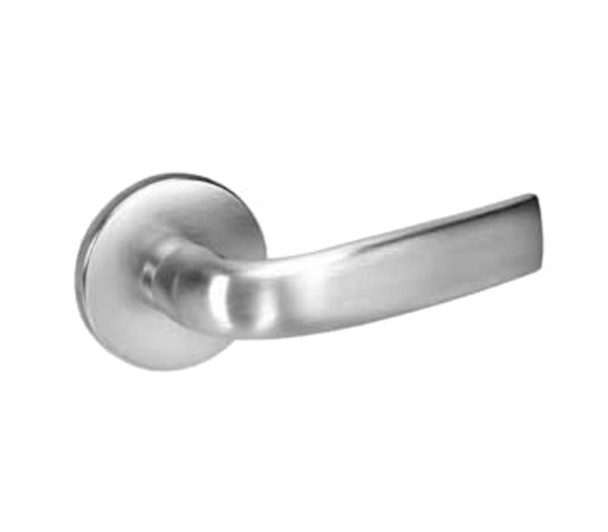

The Yale 8800 Series mortise lock trim pack delivers ANSI/BHMA Grade 1 security for high-traffic commercial doors. Built with reinforced stainless steel deadbolts and vandal-resistant trim, this lock system solves durability challenges in offices, retail, and institutional settings where strength and reliability are non-negotiable.
The JNR8860FL 626 trim pack fits standard 1-3/4" doors and supports doors up to 3-1/4" thick (to order). Field-reversible handing and UL/cUL fire-rating up to 3 hours provide flexible installation. As an authorized Yale dealer, E.D. Locks offers expert support and a 10-year mechanical warranty. Contact sales@edlocks.com or 1-877-207-6067 for sizing, finish selection, or keying assistance.
Specifications
- Brand: Yale/Accentra 8800 Series
- Model: JNR8860FL 626
- ANSI/BHMA Certification: Grade 1, A156.13 Series 1000
- UL/cUL Fire Rating: Up to 3 hours
- Backset: 2-3/4"
- Latchbolt: 3/4" stainless steel throw
- Door Thickness: 1-3/4" standard (up to 3-1/4" available)
- Cylinder: 6-pin brass, keyed-random with 2 keys (7-pin available)
- Strike: 1-1/4" curved lip, reversible (other lengths to order)
- Handing: Field reversible
- Finishes: 17 finishes available
- Warranty: 10 years mechanical
