Description

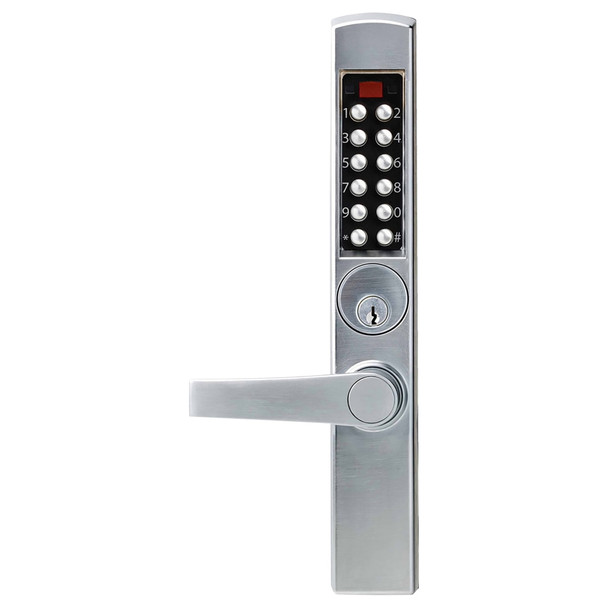

The DormaKaba E-Plex 3000 Series E3066MSNL is an electronic pushbutton mortise deadbolt designed for narrow stile doors, providing keyless access via combination codes while allowing free egress. It eliminates the costs and security risks of managing physical keys and cards, supporting up to 300 access codes with an audit trail of 9,000 events including mechanical key override use.
This lock retrofits Adams Rite mortise devices (1850, 1950, 4070, 4510, 4520, 4530, 4710, 4720, 4730, 4900, 4920AN, MS 1850S, MS 1950S, 8400 Series) with no wiring required, and installs easily in the field with four mounting screws. As an authorized DormaKaba dealer, E.D. Locks provides expert configuration support and genuine parts; contact sales@edlocks.com or call 1-877-207-6067 for compatibility verification and setup guidance.
Specifications
- Brand: DormaKaba
- Series: E-Plex 3000
- Function: Mortise Deadbolt
- Handing: Non-handed, field-changeable
- Backset: 31/32" (25 mm) minimum
- Door Thickness: 1 3/4" (44 mm)
- Minimum Stile Recommended: 2" (51 mm)
- Access Codes: 300 per door
- Audit Trail: 9,000 events maximum
- Keypad: Vandal-resistant solid metal pushbuttons
- Code Length: Adjustable 4-8 digits
- Anti-tamper Lockout: Adjustable 3-9 invalid attempts, 0-90 second lockout period
- Re-lock Time: Adjustable 2-20 seconds
- Operation Modes: PIN access, Lockout, Passage mode (1-24 hour pre-programmed re-lock)
- Authority Levels: Five levels with Service Codes for temporary access
- Key Override: Mortise Kaba cylinder, Schlage C keyway
- Construction: Extra heavy-duty, solid cast housing and lever
- Finish: Satin Chrome
- Installation: No wiring required, four mounting screws
- Compatible Devices: Adams Rite 1850, 1950, 4070, 4510, 4520, 4530, 4710, 4720, 4730, 4900, 4920AN, MS 1850S, MS 1950S, 8400 Series (devices not included)
