Description

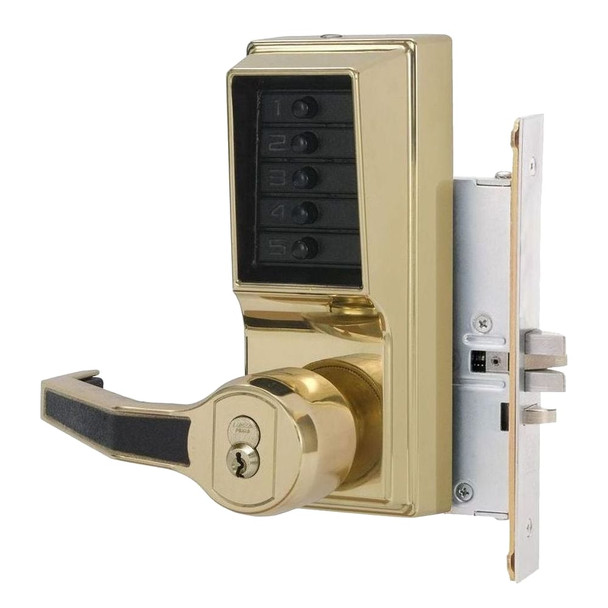

The DormaKaba L8146C-03-41 Simplex mechanical pushbutton lock provides keyless access control for offices, facilities and secured areas without batteries, computers or key management. Its vandal-resistant metal pushbuttons and cast housing make it ideal for high-traffic public-to-private transitions where convenience and reliability matter.
This lock fits standard 86-mortise preparation on wood or metal doors 1 3/4" to 2 1/4" thick, with a 2 3/4" backset and ADA-compliant fixed levers. It accepts interchangeable cores in small format (Best and equivalents) or removable cores in large format (Medeco, ASSA, Yale, Abloy, Corbin Russwin, Schlage, Sargent). Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for core selection, keying guidance and expert installation support.
Specifications
- Brand: DormaKaba
- Model: L8146C-03-41
- Backset: 2 3/4" (70 mm)
- Latch: 3/4" (19 mm) two-piece anti-friction; 1" (25 mm) optional deadbolt
- Minimum Stile Recommended: 5" (127 mm)
- Strike: 4 7/8" (124 mm) L x 1 1/4" (32 mm) W x 1/4" (6 mm) D
- Door Thickness: 1 3/4" (44 mm) to 2 1/4" (57 mm)
- Mortise Preparation: Standard (86)
- Interchangeable Cores: Small format - Best and equivalents (6 or 7-pin length)
- Removable Cores: Large format - Medeco, ASSA, Yale, Abloy, Corbin Russwin, Schlage, Sargent (5 or 6-pin length)
- Construction: Cast front housing; unified trim plate; fixed ADA-compliant levers
- Keypad: Vandal resistant solid metal pushbuttons
- Accessibility: ADA-compliant fixed levers
- Fire Rating: 3-hour UL/ULC fire rating for "A" labeled doors
- Weather Resistant: Yes
- Warranty: 3-year
