Description

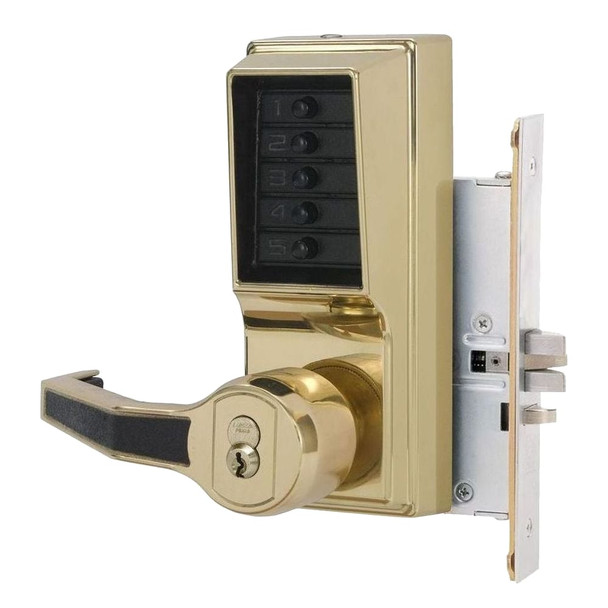

The DormaKaba L8146M-03-41 is a mechanical pushbutton lock designed for facilities managers and building owners who need keyless access control without electronics, batteries, or programming. It solves access management challenges in hospitals, offices, and secure areas by allowing instant combination changes and eliminating lost keys or card management.
This lock fits standard 86-mortise door preparation on wood or metal doors (1¾" to 2¼" thick) and includes fixed ADA-compliant levers. It accepts small-format interchangeable cores (Best/equivalent, 6 or 7-pin) or large-format removable cores (Medeco, ASSA, Yale, Abloy, Corbin Russwin, Schlage, Sargent). Contact an authorized dealer at sales@edlocks.com or 1-877-207-6067 for expert core selection, installation guidance, and warranty support.
Specifications
- Brand: DormaKaba
- Model: L8146M-03-41
- Housing: Cast front with unified trim plate
- Keypad: Vandal-resistant solid metal pushbuttons
- Backset: 2¾" (70 mm)
- Latch: ¾" (19 mm) two-piece anti-friction latch; 1" (25 mm) optional deadbolt
- Minimum Stile Recommended: 5" (127 mm)
- Strike: 4⅞" L x 1¼" W x ¼" D
- Door Preparation: Standard 86 mortise
- Door Thickness: 1¾" to 2¼"
- Interchangeable Cores: Small format (Best/equivalent, 6 or 7-pin); core not included
- Removable Cores: Large format (Medeco, ASSA, Yale, Abloy, Corbin Russwin, Schlage, Sargent, 5 or 6-pin); core not included
- ADA Compliance: Fixed ADA-compliant levers
- Weather Resistant: Yes
- Fire Rating: 3-hour UL/ULC for "A" labeled doors
- Warranty: 3-year
