Description

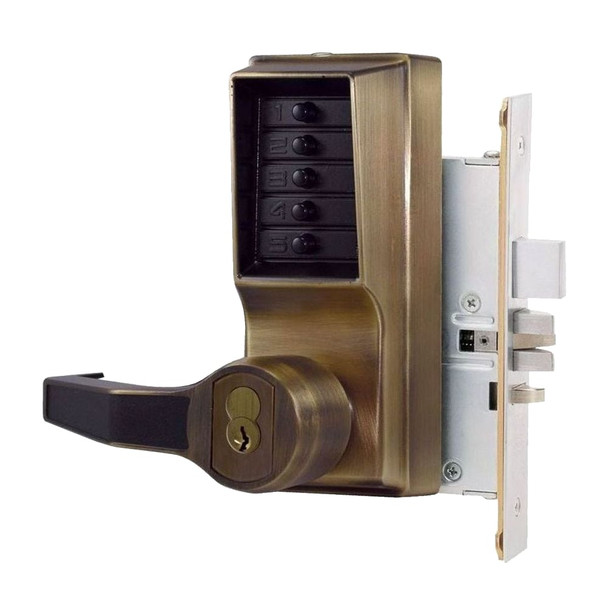

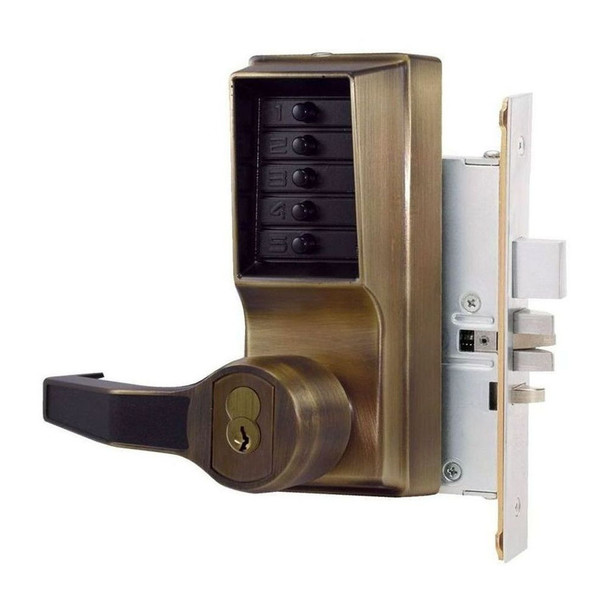

The DormaKaba L8148S-05-41 is a mechanical pushbutton lock designed for controlled access between public and private areas without keys, cards, or batteries. Ideal for offices, hospitals, and facilities requiring quick combination changes and vandal-resistant security, this lock eliminates management overhead while maintaining reliable access control.
Compatible with standard 86 mortise preparation on wood or metal doors (1¾ to 2¼ inches thick), the L8148S-05-41 accepts small-format interchangeable cores (Best and equivalents) or large-format removable cores (Medeco, ASSA, Yale, Abloy, Corbin Russwin, Schlage, Sargent). As an authorized DormaKaba dealer, E.D. Locks provides expert installation guidance and core selection support. Contact sales@edlocks.com or 1-877-207-6067 for compatibility questions.
Specifications
- Front Housing: Cast construction with unified trim plate
- Levers: Fixed ADA-compliant
- Keypad: Vandal-resistant solid metal pushbuttons
- Backset: 2¾ inches (70 mm)
- Latch: ¾ inch (19 mm) two-piece anti-friction; 1 inch (25 mm) optional deadbolt
- Minimum Stile: 5 inches (127 mm) recommended
- Strike: 4⅞ inches (L) x 1¼ inches (W) x ¼ inch (D)
- Door Preparation: Standard (86) mortise
- Door Thickness: 1¾ to 2¼ inches (44 to 57 mm)
- Interchangeable Cores: Small format (Best, 6 or 7-pin); core not included
- Removable Cores: Large format options (5 or 6-pin length); core not included
- Accessibility: ADA-compliant
- Fire Rating: 3-hour UL/ULC for "A" labeled doors
- Weather Resistance: Yes
- Warranty: 3 years
