Description

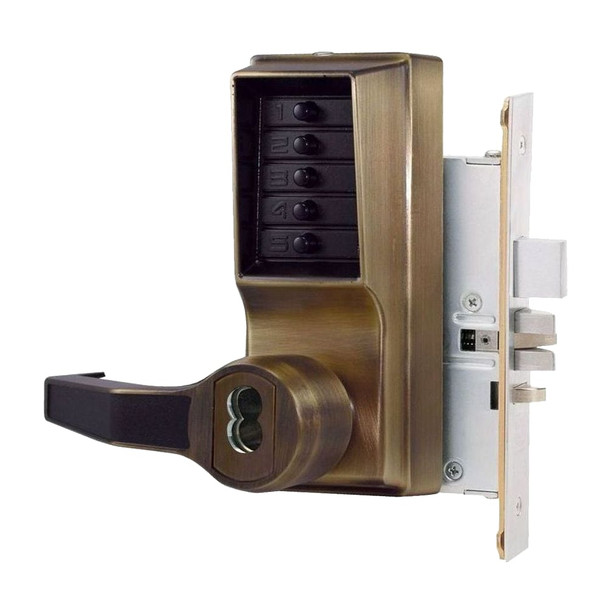

The DormaKaba RR8148S-05-41 is a mechanical pushbutton lock designed for keyless access control between public and private areas. Ideal for offices, schools, and facilities managers, it eliminates the need for keys, cards, or batteries. Combinations change in seconds without removing the lock from the door, making it a convenient solution for controlling access and rekeying.
This lock installs on standard 86 mortise preparation for wood or metal doors (1¾ to 2¼ inches thick) and features ADA-compliant levers for accessibility. The RR8148S-05-41 accepts interchangeable cores in small format (Best and equivalents) or removable cores in large format (Medeco, ASSA, Yale, Abloy, Corbin Russwin, Schlage, Sargent; cores sold separately). Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for expert guidance on core selection, installation, and warranty support.
Specifications
- Brand: DormaKaba
- Model: RR8148S-05-41
- Lock Type: Mechanical pushbutton
- Front Housing: Cast with unified trim plate
- Keypad: Vandal-resistant solid metal pushbuttons
- Backset: 2¾ inches (70 mm)
- Latch: ¾ inch (19 mm) two-piece anti-friction; 1 inch (25 mm) optional deadbolt
- Minimum Stile: 5 inches (127 mm) recommended
- Strike: 4⅞ inches (124 mm) L x 1¼ inches (32 mm) W x ¼ inch (6 mm) D
- Interchangeable Cores: Small format (Best and equivalents, 6 or 7-pin); core not included
- Removable Cores: Large format (Medeco, ASSA, Yale, Abloy, Corbin Russwin, Schlage, Sargent, 5 or 6-pin); core not included
- Door Preparation: Standard 86 mortise
- Door Thickness: 1¾ to 2¼ inches (44 to 57 mm)
- Accessibility: ADA-compliant fixed levers
- Fire Rating: 3-hour UL/ULC for A labeled doors
- Weather Resistant: Yes
- Warranty: 3 years
