Description

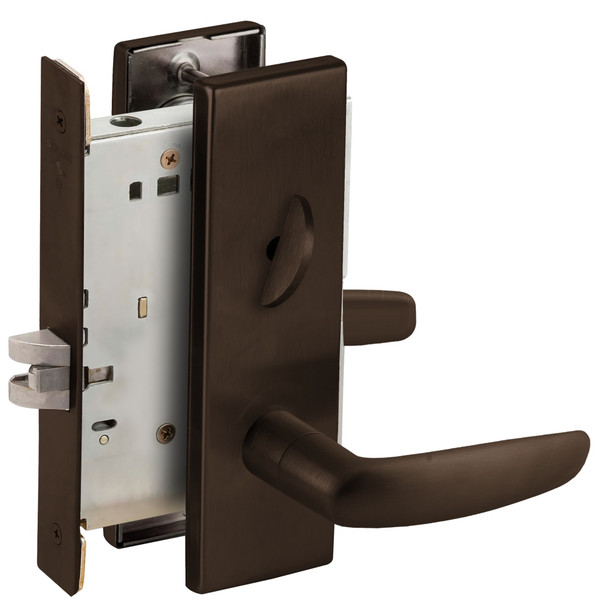

The Schlage L9040 07N 613 is an extra-heavy-duty mortise lock built for high-traffic environments including schools, hospitals, and factories. Featuring a heavy-gauge steel case, ANSI Grade 1 certification, and all-metal zinc dichromate-plated components, this lock withstands constant daily use and abuse while maintaining reliable operation and consistent security.
The universal lock case accommodates ten functions in one design with field-reversible handing and adaptability to beveled door edges. Thru-bolted trim, break-away spindle, hub blocking plate, and fail-secure fusible link provide comprehensive protection against tampering and forced entry. Contact an authorized Schlage dealer at sales@edlocks.com or 1-877-207-6067 for expert guidance on keying, trim selection, and application-specific configuration.
Specifications
- Brand: Schlage
- Model: L9040 07N 613
- Lock Type: Mortise
- Duty Rating: Extra Heavy Duty
- Security Grade: ANSI Grade 1
- Case Material: Heavy-gauge steel with full wrap
- Working Parts: All-metal zinc dichromate-plated
- Functions: Ten functions available in one case
- Handing: Field-reversible without opening lock case
- Mounting: Floating tabs adjust for beveled doors
- Security Features: Break-away spindle, hub blocking plate, spring-loaded fusible link (fail-secure mode)
- Inside Trim: Screwless shank mounting, locking thumb-turn
- Lever Operation: Bi-directional rotation with independent lever movement
