Description
The Schlage L9050B is an extra-heavy-duty mortise lock engineered for high-traffic commercial environments like schools, hospitals, and factories. Built to ANSI Grade 1 standards, it features a fully wrapped steel case, zinc dichromate-plated components, and two-piece anti-friction tongue to withstand constant use and abuse without compromise.
This universal lock case accommodates ten functions in one body and is field-reversible for either hand without opening the case. Compatible with standard mortise lock preparations on wood or metal doors. For proper specification, keying options, and installation support, contact our authorized Schlage dealer team at sales@edlocks.com or 1-877-207-6067.
Specifications
- Brand: Schlage

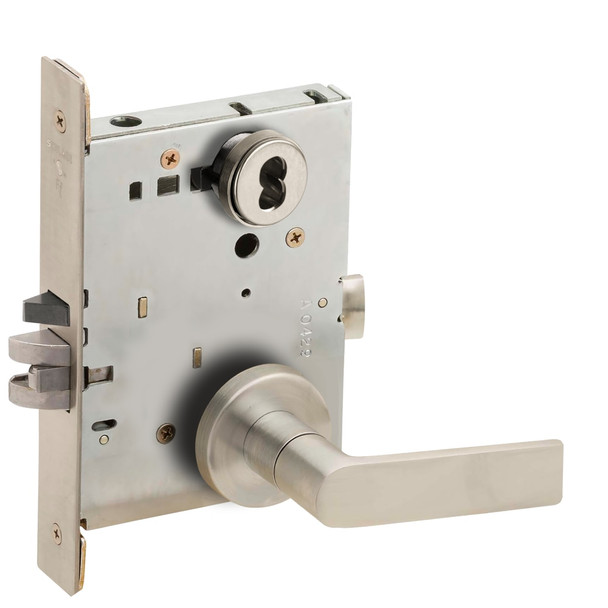

- Model: L9050B 01A 619
- Grade: ANSI Grade 1
- Lock Type: Mortise Lock, Extra Heavy Duty
- Finish: Satin Chrome (619)
- Case Material: Heavy-gauge wrapped steel
- Working Parts: Zinc dichromate-plated all-metal
- Handing: Field-reversible
- Functions: Ten functions in universal lock case
- Security Features: Break-away spindle, hub blocking plate, spring-loaded fusible link fail-secure mode
- Installation: Thru-bolted trim, floating mounting tabs for beveled doors
