Description

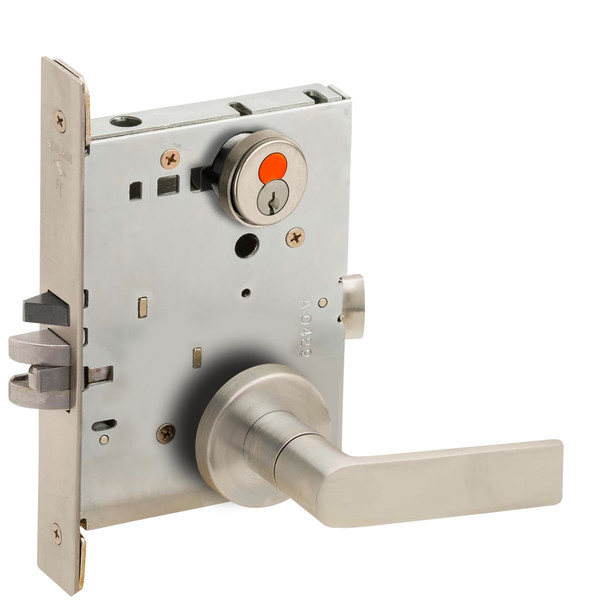

The Schlage L9050T 01A 619 is an ANSI Grade 1 extra heavy-duty mortise lock engineered for high-traffic institutional environments including schools, hospitals, and factories. Its fully wrapped steel case, zinc dichromate-plated components, and two-piece anti-friction tongue resist constant use and abuse while maintaining reliable operation.
This universal lock case supports ten functions in one housing and features field-reversible handing for flexible installation. The 619 satin chrome finish complements modern interiors. Verify door prep and function requirements before ordering. E.D. Locks is an authorized Schlage dealer offering expert guidance via sales@edlocks.com or 1-877-207-6067 to ensure proper specification and installation.
Specifications
- Brand: Schlage
- Model: L9050T 01A 619
- Grade: ANSI Grade 1
- Type: Mortise Lock, Extra Heavy Duty
- Finish: Satin Chrome (619)
- Case: Heavy-gauge, fully wrapped steel
- Working Parts: All-metal, zinc dichromate-plated
- Tongue: Two-piece anti-friction design
- Handing: Field-reversible
- Functions: Ten functions in one case
- Security Features: Break-away spindle, hub blocking plate, spring-loaded fusible link (fail secure mode)
- Mounting: Universal case with floating mounting tabs for beveled doors
