Description

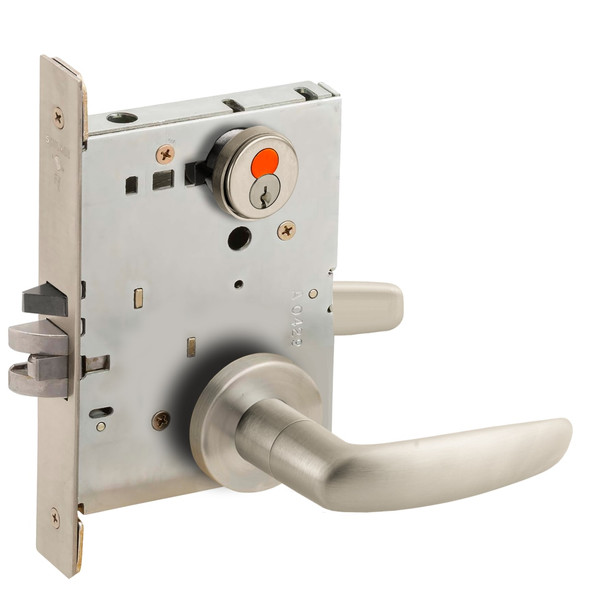

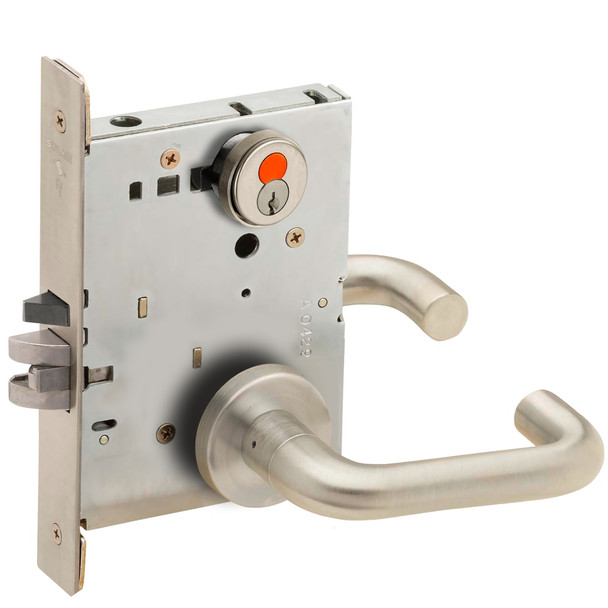

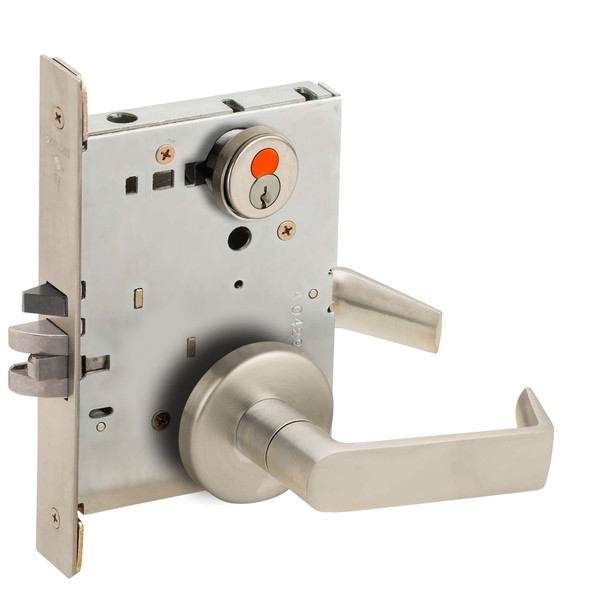

The Schlage L9050H is an ANSI Grade 1 extra heavy-duty mortise lock designed for high-traffic commercial environments including schools, hospitals, and factories. Built with a heavy-gauge steel case and all-metal zinc dichromate-plated components, it resists door edge attacks and constant abuse while maintaining reliable operation in demanding applications.
This universal lock case accommodates ten functions in one design and features field-reversible handing without opening the lock. Compatible with standard mortise preparation in 2-3/8" or 2-3/4" backset doors. Our authorized dealer team at E.D. Locks can help you verify handing, keying options, and trim compatibility. Contact sales@edlocks.com or call 1-877-207-6067 for expert guidance on function selection and installation support.
Specifications
- Grade: ANSI Grade 1
- Series: Schlage L9000
- Lock Type: Mortise
- Finish: Satin Nickel (619)
- Case Material: Heavy-gauge steel with zinc dichromate plating
- Handing: Field-reversible
- Functions Available: Ten in one case
- Security Features: Break-away spindle, hub blocking plate, spring-loaded fusible link (fail secure)
- Mounting: Thru-bolted trim, floating tabs for beveled doors
