Description

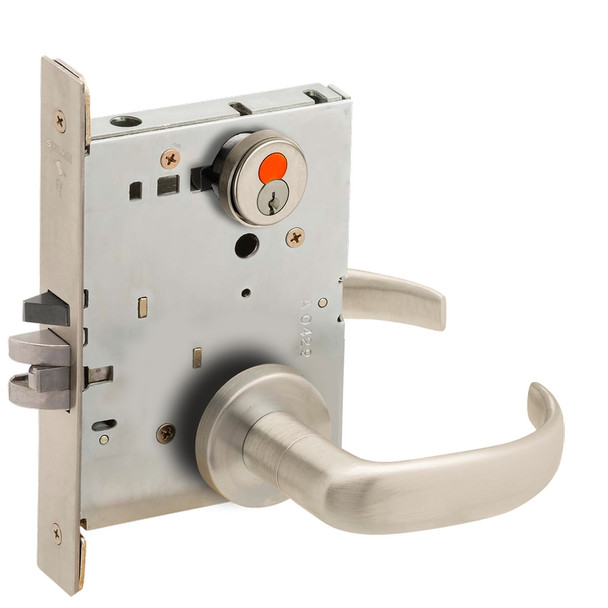

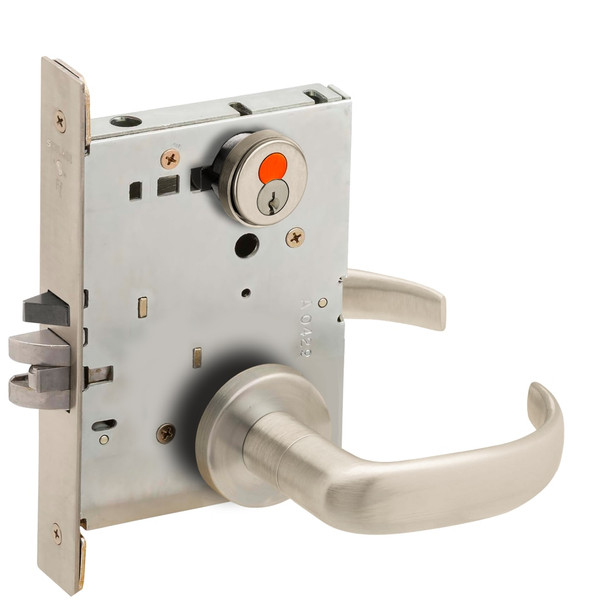

The Schlage L9050H 17A is an extra heavy-duty mortise lock built for high-traffic institutional environments including schools, hospitals, and factories. This Grade 1 rated lock features a fully wrapped steel case, zinc-plated working parts, and anti-friction components designed to handle constant use without failure.
The L9050H accommodates ten functions in one universal case and supports field-reversible handing for flexible installation. Compatible with standard mortise lock preparation. For keying options, compatibility verification, and expert guidance on finish selection, contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067.
Specifications
- Model: L9050H 17A
- Finish: 619
- ANSI Grade: 1
- Lock Type: Mortise
- Series: L-Series
- Case: Heavy-gauge steel, fully wrapped
- Working Parts: Zinc dichromate-plated
- Security Features: Break-away spindle, hub blocking plate, spring-loaded fusible link (fail-secure)
- Functions: Ten functions available in single case
- Handing: Field-reversible without opening case
- Trim Mount: Thru-bolted outside and inside trim
