Description

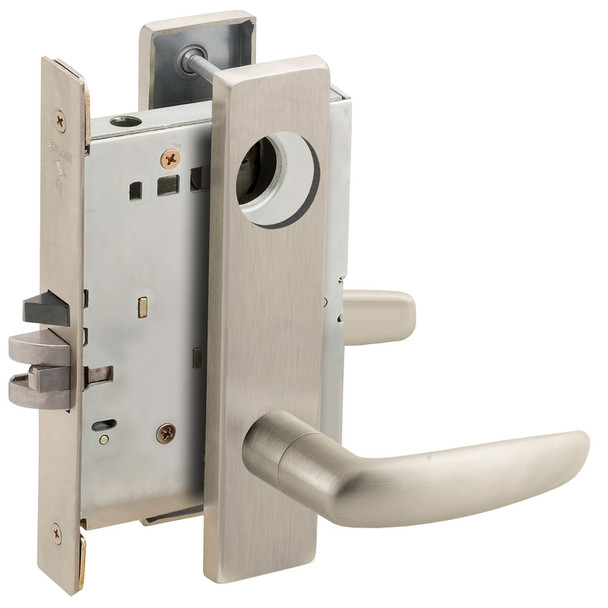

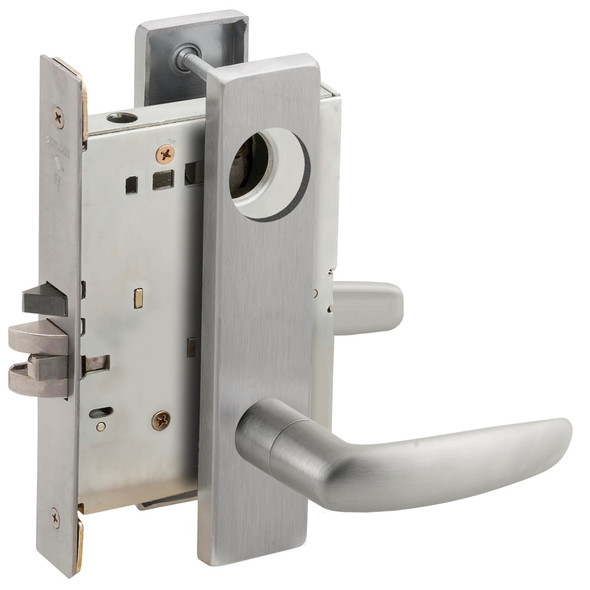

The Schlage L9050L is an ANSI Grade 1 extra heavy-duty mortise lock engineered for high-traffic institutional environments including schools, hospitals, and factories. Its fully wrapped steel case, zinc dichromate-plated components, and two-piece anti-friction tongue deliver durability and consistent performance under constant use without compromise.
This universal lock case supports ten functions in one housing with field-reversible handing, adaptable floating mounting tabs for beveled doors, and external spring cages for easy retrofit. Verify door thickness and prep requirements before installation. As an authorized Schlage dealer, E.D. Locks offers expert guidance on keying, handing, and application matching. Contact sales@edlocks.com or call 1-877-207-6067 for technical support.
Specifications
- Brand: Schlage
- Model: L9050L 07L 619
- ANSI Grade: Grade 1
- Lock Type: Mortise
- Series: L-Series (Extra Heavy Duty)
- Case Construction: Heavy-gauge, fully wrapped steel
- Plating: Zinc dichromate
- Functions Available: Ten functions in one case
- Handing: Field-reversible without opening lock case
- Mounting: Floating tabs (adjustable for beveled door edges)
- Security Features: Break-away spindle, hub blocking plate, spring-loaded fusible link (fail secure), locking thumb-turn
- Trim Mount: Through-bolted, no exposed screws
- Spindle: Easy replacement design
- Lever Rotation: Both directions, independent lever operation
