Description

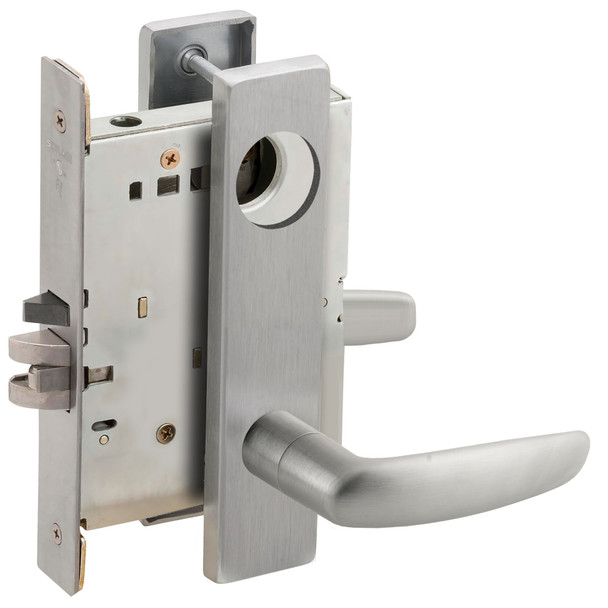

The Schlage L9050L is an extra heavy-duty mortise lock engineered for high-traffic commercial environments like schools, hospitals, and factories. Built to ANSI Grade 1 standards, it features a fully wrapped steel case, all-metal zinc dichromate-plated parts, and a two-piece anti-friction tongue designed to handle constant use and abuse without failure.
This universal lock case offers ten functions in one body and accepts standard Schlage trim. The field-reversible handing eliminates the need to open the case, and floating mounting tabs accommodate beveled door edges. As an authorized Schlage dealer, E.D. Locks provides expert guidance on function selection, finish options, and installation. Contact our sales team at sales@edlocks.com or 1-877-207-6067 for technical support.
Specifications
- Brand: Schlage
- Model: L9050L 07L 626
- Grade: ANSI Grade 1
- Lock Type: Mortise
- Case Material: Heavy-gauge wrapped steel
- Working Parts: All-metal zinc dichromate-plated
- Functions: Ten functions available
- Handing: Field-reversible without opening case
- Features: Break-away spindle, hub blocking plate, spring-loaded fusible link, locking thumb-turn, independent lever rotation
