Description

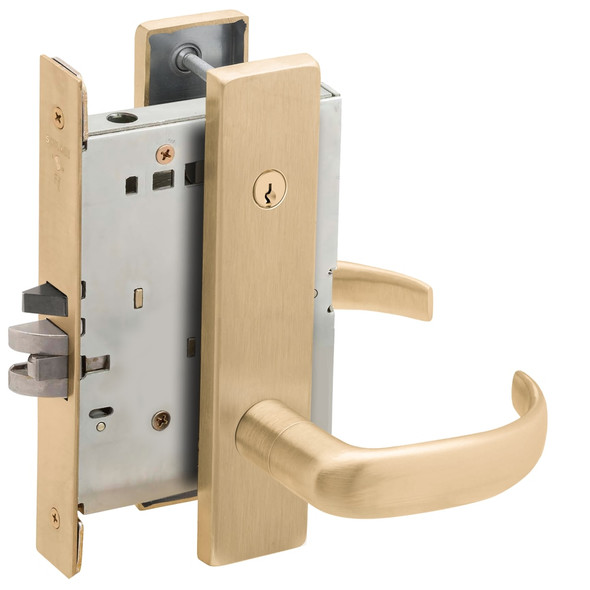

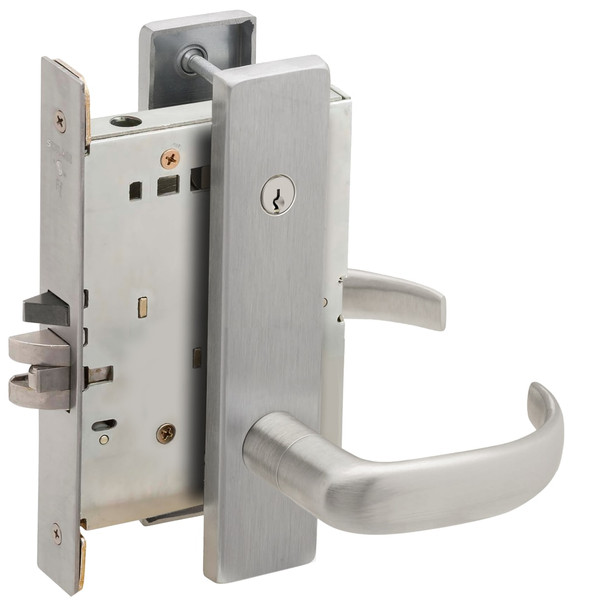

The Schlage L9070C 17L is an extra-heavy-duty mortise lock built for high-traffic institutional environments including schools, hospitals, and factories. It delivers consistent, dependable operation under constant use while meeting ANSI Grade 1 safety standards. Heavy-gauge steel case, zinc-plated components, and two-piece anti-friction tongue reduce wear and extend lock life in demanding applications.
This universal lock case accommodates ten functions in one design, with field-reversible handing and floating tabs for beveled doors. Compatible with standard mortise preparations. An authorized E.D. Locks dealer, we provide expert selection and installation guidance at sales@edlocks.com or 1-877-207-6067 to ensure your security hardware meets code and performance requirements.
Specifications
- Series: Schlage L9000
- Model: L9070C 17L
- Finish: 626 (Satin Chrome)
- Grade: ANSI Grade 1
- Lock Type: Mortise
- Case Material: Heavy-gauge steel, fully wrapped
- Working Parts: Zinc dichromate-plated
- Features: Break-away spindle, hub blocking plate, spring-loaded fusible link (fail secure), screwless shank mounting, locking thumb-turn, independent lever rotation
- Mounting: Thru-bolted trim, floating tabs for beveled doors
- Handing: Field-reversible without opening case
