Description

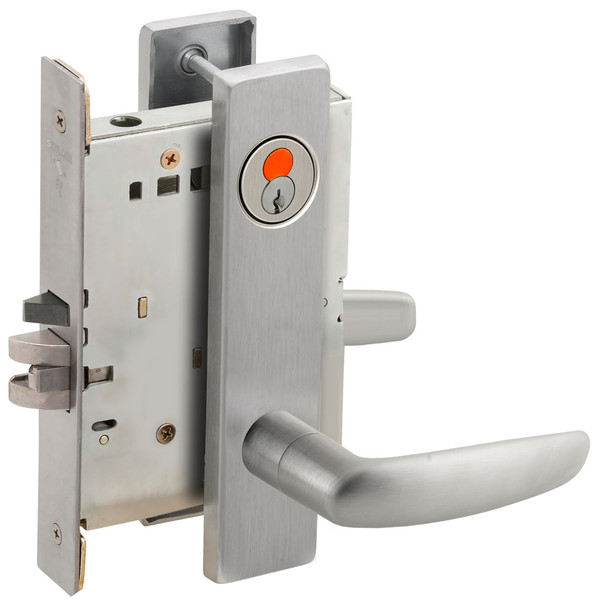

The Schlage L9070H 07L 630 is an extra heavy-duty mortise lock engineered for high-traffic commercial environments including schools, hospitals, and factories. Built to ANSI Grade 1 standards, it features a fully wrapped steel case, zinc dichromate-plated internal components, and a two-piece anti-friction tongue that resists wear and abuse while maintaining reliable operation day after day.
This universal lock case supports ten functions in one body and accepts a variety of trim designs and finishes to match any aesthetic. The field-reversible handing eliminates the need to open the case, and floating mounting tabs accommodate beveled doors. For proper installation and to select the right keying options for your application, contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for expert guidance.
Specifications
- Series: Schlage L9000
- Model: L9070H 07L 630
- Grade: ANSI Grade 1
- Case Construction: Heavy-gauge, fully wrapped steel with zinc dichromate plating
- Handing: Field-reversible without opening case
- Functions: Ten functions available in universal case
- Security Features: Break-away spindle, hub blocking plate, spring-loaded fusible link (fail secure)
- Mounting: Thru-bolted trim with floating tabs for beveled doors
- Interior: Screwless shank mounting, locking thumb-turn, independent lever rotation
