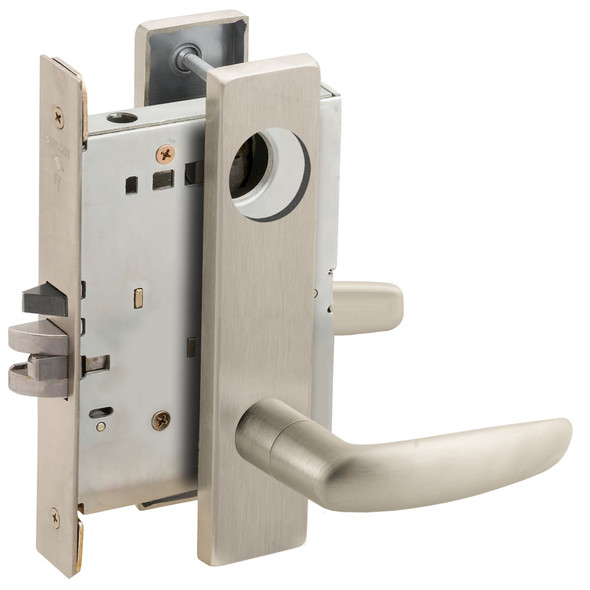

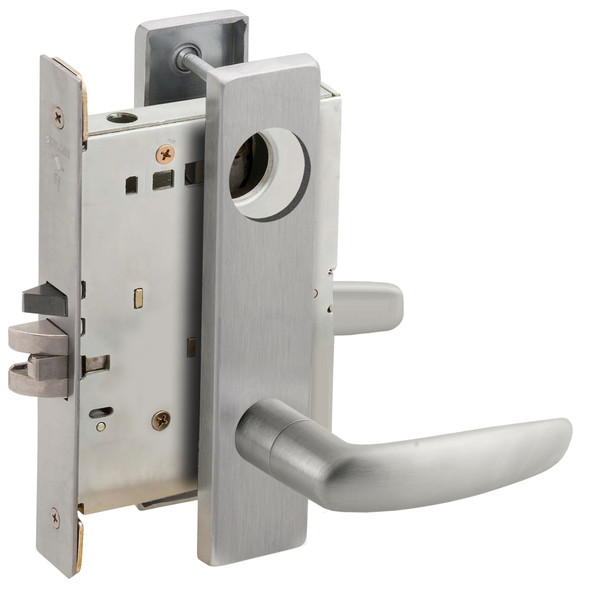

The Schlage L9070L is an extra heavy-duty mortise lock engineered for high-traffic institutional environments including schools, hospitals, and factories. It delivers ANSI Grade 1 security with a fully wrapped steel case, zinc-plated components, and anti-friction design to handle constant use without compromise.
This universal lock case supports ten functions and field-reversible handing, eliminating the need to open the case for adjustments. Floating mounting tabs accommodate beveled doors, and external spring cages enable simple trim retrofits. As an authorized Schlage dealer, E.D. Locks provides expert configuration guidance and fast shipping. Contact our sales team at sales@edlocks.com or 1-877-207-6067 for keying options and compatibility questions.
Specifications
- Series: Schlage L Series
- Model: L9070L 07L 630
- Security Rating: ANSI Grade 1
- Case Material: Heavy-gauge wrapped steel with zinc dichromate plating
- Functions: Ten in one universal case
- Handing: Field-reversible without opening case
- Features: Break-away spindle, hub blocking plate, spring-loaded fusible link, locking thumb-turn, independent lever rotation
- Installation: Through-bolted trim, floating mounting tabs for beveled doors
