Description

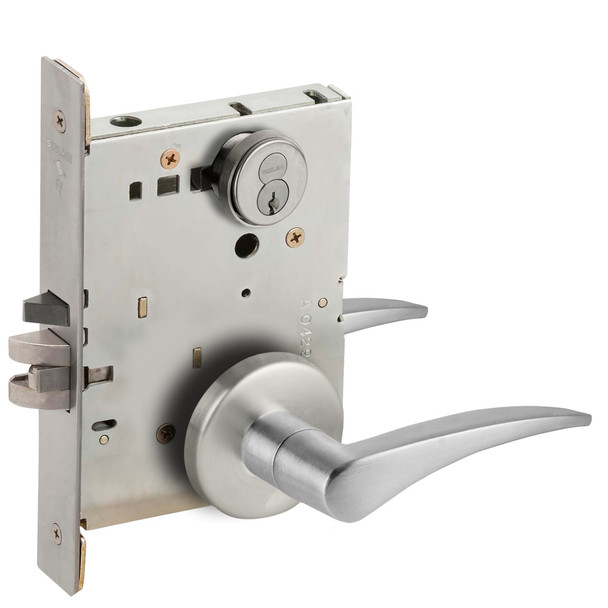

The Schlage L9070R is an extra heavy-duty mortise lock built for high-traffic commercial environments like schools, hospitals, and factories. It withstands constant use and abuse while meeting ANSI Grade 1 safety standards. The fully wrapped steel case, zinc-plated components, and anti-friction design deliver durability without compromising security or aesthetics.
This universal lock case supports ten functions and is field-reversible for left-hand or right-hand installation without opening the case. Compatible with standard mortise lock applications and retrofit trim. As an authorized Schlage dealer, E.D. Locks provides expert guidance on keying, installation, and function selection. Contact our sales team at sales@edlocks.com or 1-877-207-6067 for personalized support.
Specifications
- Series: Schlage L9000
- Model: L9070R 12B 630 LH
- Grade: ANSI Grade 1
- Case Material: Heavy-gauge steel, fully wrapped
- Working Parts: All-metal zinc dichromate-plated
- Security Features: Break-away spindle, hub blocking plate, spring-loaded fusible link
- Mounting: Floating mounting tabs, field-reversible handing
- Functions Available: Ten functions in one case
- Finish: 630 (satin stainless steel)
- Handing: LH (left-hand)
