Description

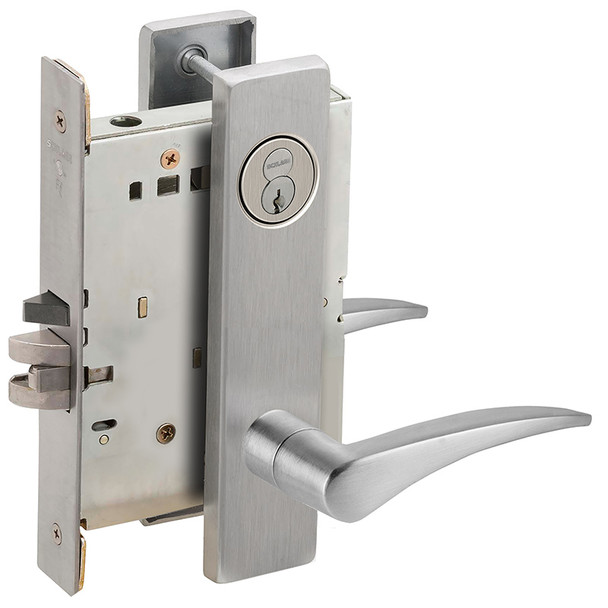

The Schlage L9070R is an extra-heavy-duty mortise lock built for high-traffic institutional environments including schools, hospitals, and factories. It combines ANSI Grade 1 security with dependable operation under constant use, protecting your facility with a heavy-gauge steel case and anti-friction design that resists wear and abuse.
This left-hand lock is field-reversible and compatible with standard mortise preparations. Installation is straightforward with thru-bolted trim and floating mounting tabs that accommodate beveled doors. As an authorized Schlage dealer, E.D. Locks provides expert configuration support and keying guidance at sales@edlocks.com or 1-877-207-6067 to ensure your lock meets your exact security needs.
Specifications
- Series: L Series (L9000 Grade 1)
- Model: L9070R 12L 630
- Handing: Left Hand (LH)
- Case Type: Universal mortise case with ten functions in one
- Finish: 630 (Stainless Steel)
- Security Rating: ANSI Grade 1
- Case Material: Heavy-gauge, fully wrapped steel with zinc dichromate plating
- Fire Mode: Fail-secure with spring-loaded fusible link
- Anti-Spindle Manipulation: Hub blocking plate included
- Mounting: Field-reversible handing, floating mounting tabs for beveled doors
