Description

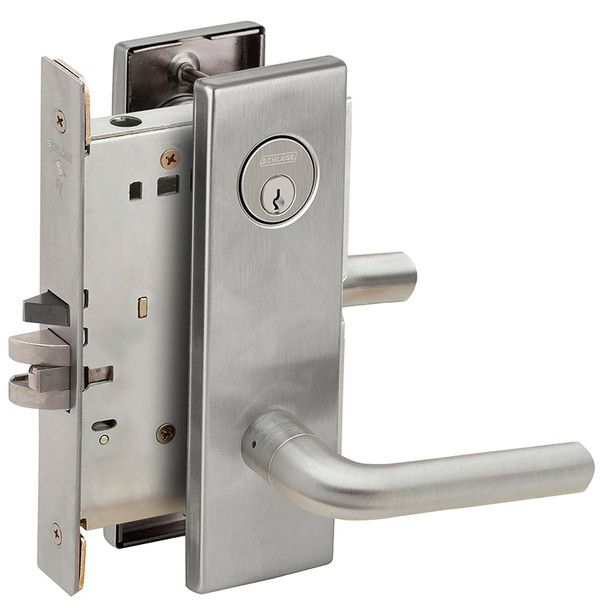

The Schlage L9076P is an extra-heavy-duty mortise lock engineered for high-traffic commercial environments including schools, hospitals, and factories. Its Grade 1 ANSI-certified construction features a fully wrapped steel case, all-metal working parts, and anti-friction components that resist constant use, abuse, and door-edge attacks.
This universal lock case supports ten functions in one housing and accommodates beveled doors with floating mounting tabs. Compatible with standard mortise lock preparations, the L9076P offers field-reversible handing and simple trim retrofit capability. For keying options, compatibility verification, and expert installation guidance, contact our authorized Schlage dealer team at sales@edlocks.com or 1-877-207-6067.
Specifications
- Finish: Satin Stainless (630)
- Series: Schlage L9000 Extra Heavy Duty
- Grade: ANSI Grade 1
- Case Material: Heavy-gauge, fully wrapped steel with zinc dichromate-plated working parts
- Handing: Field-reversible without opening lock case
- Functions: Ten functions available in single case
- Security Features: Break-away spindle, hub blocking plate, spring-loaded fusible link for fail-secure mode
- Mounting: Floating tabs for beveled door edges, thru-bolted trim
- Trim: Screwless shank mounting, independent lever rotation
