Description

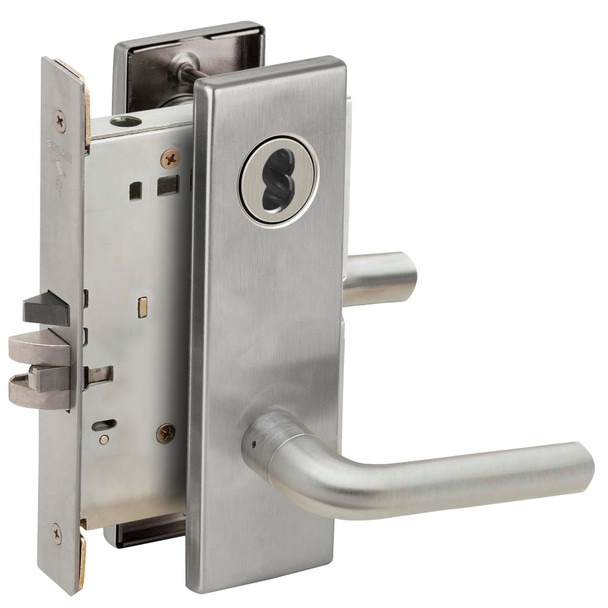

The Schlage L9080B 02N 630 is an extra heavy-duty mortise lock built for high-traffic institutional environments including schools, hospitals, and factories. Its ANSI Grade 1-rated construction features a fully wrapped steel case, zinc-plated working parts, and two-piece anti-friction tongue to resist wear and deliver dependable operation under constant use.
This universal lock case accommodates ten functions in one housing and supports field-reversible handing without disassembly. The 630 satin stainless finish resists corrosion in demanding settings. Verify door thickness, handing, and function requirements before ordering. As an authorized Schlage dealer, E.D. Locks provides expert guidance and support at sales@edlocks.com or 1-877-207-6067 to ensure correct specification and installation.
Specifications
- Brand: Schlage L-Series
- Model: L9080B 02N 630
- Grade: ANSI Grade 1
- Finish: Satin Stainless (630)
- Case Type: Heavy-gauge, fully wrapped steel with zinc dichromate plating
- Functions: Ten functions in universal case
- Handing: Field-reversible without opening case
- Security Features: Break-away spindle, hub blocking plate, spring-loaded fusible link for fail-secure fire mode
- Installation: Thru-bolted trim, floating mounting tabs for beveled doors
