Description
The Schlage L9076R is an extra heavy-duty mortise lock engineered for high-traffic commercial environments like schools, hospitals, and factories. It delivers ANSI Grade 1-rated security with a fully wrapped steel case, zinc-plated components, and anti-friction tongues that resist wear from constant daily use and abuse.
This universal lock case accommodates ten different functions, field-reversible handing, and beveled door adjustment without opening the case. Compatible with standard mortise preparations; keying and function configuration available through our expert team at sales@edlocks.com or 1-877-207-6067. As an authorized Schlage dealer, we provide technical support and competitive pricing on all L Series locks.
Specifications

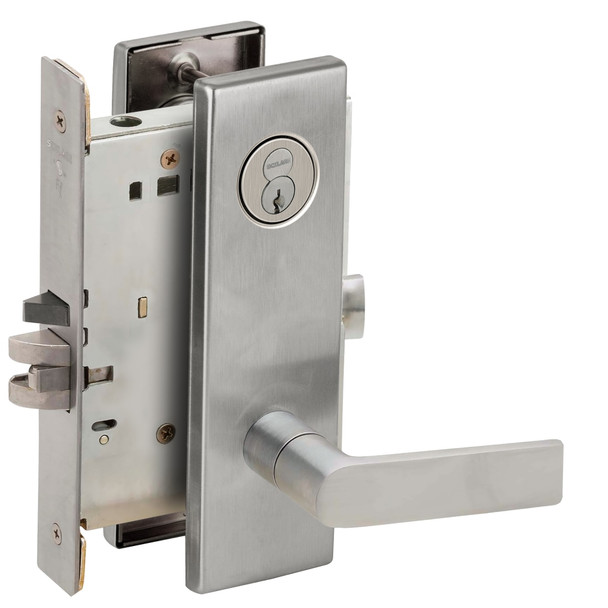

- Model: L9076R 01N 626
- Brand: Schlage
- Type: Mortise Lock
- Series: L9000 (L Series Extra Heavy Duty)
- Security Rating: ANSI Grade 1
- Case Material: Heavy-gauge, fully wrapped steel
- Working Parts: All-metal, zinc dichromate-plated
- Finish: Satin Chrome (626)
- Functions: 10 available in universal case
- Features: Break-away spindle, hub blocking plate, spring-loaded fusible link, screwless shank mounting, floating mounting tabs, field-reversible handing, external spring cages, locking thumb-turn
