Description

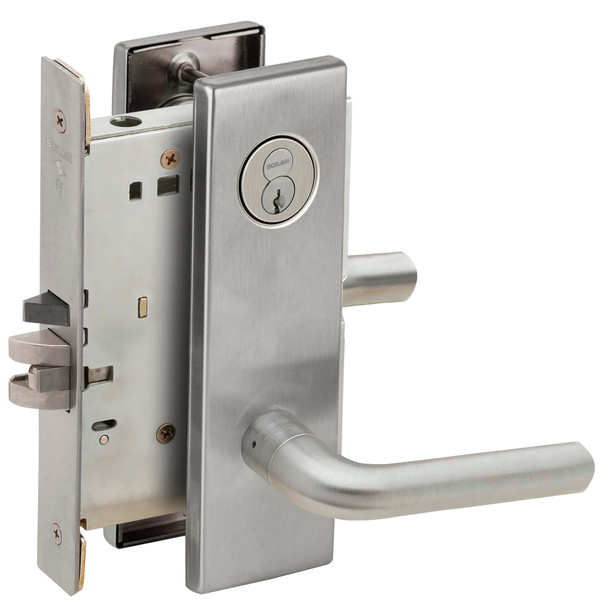

The Schlage L9076R is an extra heavy-duty mortise lock engineered for high-traffic commercial environments like schools, hospitals, and factories. Built to ANSI Grade 1 standards, it features a fully wrapped steel case, zinc dichromate-plated components, and anti-friction tongue design to endure constant use without compromising security or operation.
This universal lock case supports ten functions in one body and is field-reversible without opening the lock. Compatible with standard mortise applications, it installs with thru-bolted trim and includes a break-away spindle for easy replacement. As an authorized Schlage dealer, E.D. Locks offers expert guidance on keying and configuration. Contact sales@edlocks.com or call 1-877-207-6067 for application support.
Specifications
- Brand: Schlage
- Model: L9076R 02N 626
- Type: Extra Heavy-Duty Mortise Lock
- Security Grade: ANSI Grade 1
- Finish: Satin Chrome (626)
- Case Construction: Heavy-gauge fully wrapped steel with zinc dichromate-plated parts
- Functions: Ten functions in universal lock case
- Handing: Field-reversible without opening lock case
- Features: Break-away spindle, hub blocking plate, spring-loaded fusible link for fail-secure mode, floating mounting tabs for beveled doors, locking thumb-turn, independent lever rotation
