Description

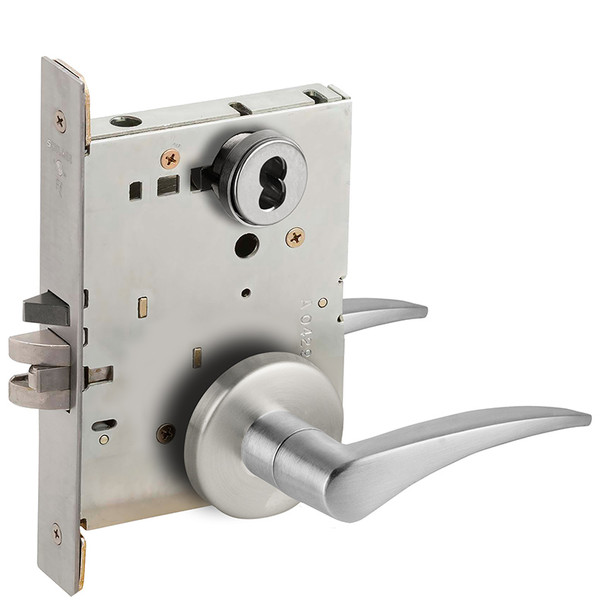

The Schlage L9080J is an extra-heavy-duty mortise lock designed for high-traffic commercial environments including schools, hospitals, and factories. Built to ANSI Grade 1 standards, it features a fully wrapped steel case, zinc-plated working parts, and anti-friction components that withstand constant use and abuse without compromising security or operation.
This mortise lock offers universal mounting with ten functions in a single case, field-reversible handing, and adaptability to beveled doors. Compatible with standard commercial door frames and trim, the L9080J 12B 630 RH can be installed by qualified locksmiths or maintenance professionals. Contact E.D. Locks at sales@edlocks.com or 1-877-207-6067 for expert guidance on keying options, trim compatibility, and installation to ensure optimal performance.
Specifications
- Series: L-Series Extra Heavy Duty Mortise Lock
- Model: L9080J 12B 630 RH
- Grade: ANSI Grade 1
- Case Construction: Heavy-gauge, fully wrapped steel with zinc dichromate plating
- Security Features: Break-away spindle, hub blocking plate, spring-loaded fusible link for fail-secure mode
- Functions: 10 functions available in one case
- Handing: Right hand, field-reversible without opening case
- Trim Mounting: Thru-bolted outside and inside trim through door
- Mounting: Floating tabs adjust to beveled door edges
- Interior: Screwless shank lever mounting, locking thumb-turn
