Description

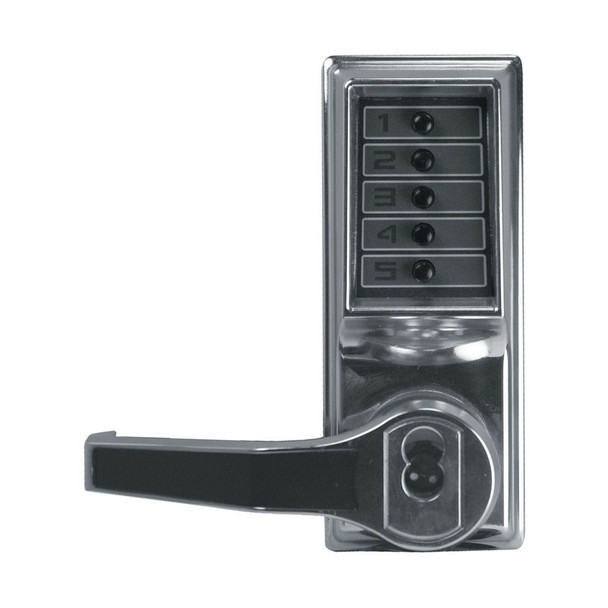

The DormaKaba LL1021R-026-41 is a heavy-duty mechanical pushbutton lock designed for facilities requiring keyless access control between public and private areas. No keys, cards, computers, or batteries needed—change combinations in seconds without removing the lock from the door. Heavy-duty cylindrical construction with cast front housing and ADA-compliant fixed levers provide security and accessibility.
This lock installs on wood or metal doors (1⅜" to 2¼" thickness) with standard ASA 161 door preparation. Pre-assembled for 1⅝" to 2" doors. As an authorized DormaKaba dealer, E.D. Locks offers expert installation guidance and support via sales@edlocks.com or 1-877-207-6067 to ensure proper keying and fit for your facility.
Specifications
- Door Thickness: 1⅜" (35 mm) to 2¼" (57 mm)
- Pre-assembled for: 1⅝" (41 mm) to 2" (51 mm) doors
- Backset Options: 2¾" (70 mm), 2⅜" (60 mm)
- Latch Throw: ½" (13 mm) standard, ¾" (19 mm) optional
- Minimum Stile: 5" (127 mm)
- Keypad: Vandal resistant solid metal pushbuttons
- Handing: Factory-handed, not field reversible
- Fire Rating: 3-hour UL/ULC for "A" labeled doors
- Accessibility: ADA-compliant fixed levers
- Durability: D.O.D. Compliant 5220.22M, weather resistant
- Warranty: 3-year
