Description

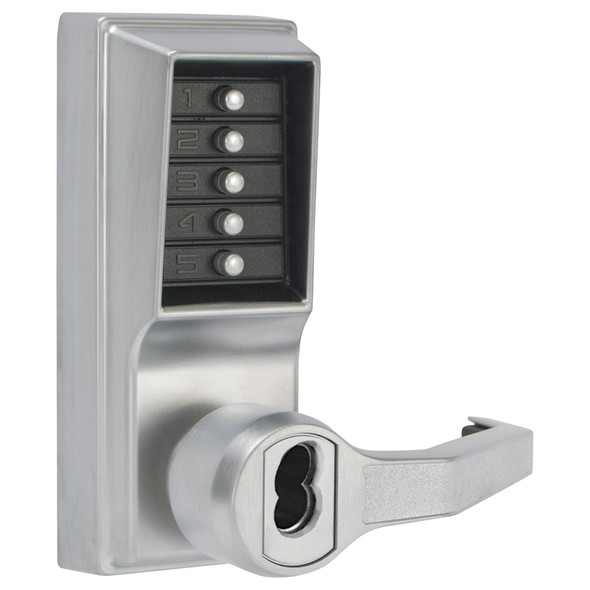

The DormaKaba LR1041R-05-41 is a heavy-duty mechanical pushbutton lock designed for facilities needing keyless access control between public and private areas. Ideal for offices, hospitals, and schools, this lock eliminates key management hassles, requires no batteries or programming, and allows combination changes in seconds without door removal.
Installs on wood or metal doors (1⅜" to 2¼" thick) with standard ASA 161 preparation and accommodates pre-assembled 1⅝" to 2" doors. Featuring ADA-compliant fixed levers, ½" throw latch, vandal-resistant pushbuttons, and 3-hour UL/ULC fire rating, it delivers commercial-grade durability. Contact our experts at sales@edlocks.com or 1-877-207-6067 for handing options, backset selection, and installation guidance.
Specifications
- Brand: DormaKaba
- Model: LR1041R-05-41
- Lock Type: Mechanical Pushbutton Cylindrical
- Door Thickness: 1⅜" to 2¼" (35-57 mm)
- Pre-assembled for: 1⅝" to 2" (41-51 mm) doors
- Backset: 2¾" (70 mm) or 2⅜" (60 mm)
- Latch Throw: ½" (13 mm) standard; ¾" (19 mm) optional
- Front Housing: Cast with unified trim plate
- Keypad: Vandal-resistant solid metal pushbuttons
- Levers: Fixed ADA-compliant
- Strike: Standard or ASA strike plate
- Door Preparation: ASA 161 with additional through holes
- Handing: Factory-handed; not field reversible
- Fire Rating: 3-hour UL/ULC for "A" labeled doors
- Compliance: ADA; D.O.D. 5220.22M supplemental access control; weather resistant
- Warranty: 3 years
