Description

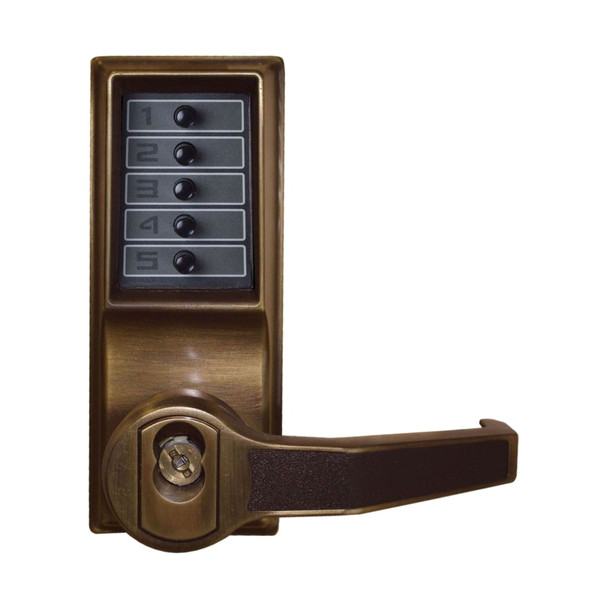

The DormaKaba Simplex LR1076B-05-41 is a heavy-duty mechanical pushbutton lock designed for facilities needing keyless access control between public and private areas. No keys, cards, computers, or batteries required. Combinations change in seconds without removing the lock, making it ideal for schools, offices, healthcare, and government buildings where security and convenience matter.
This cylindrical lock installs on wood or metal doors with ASA 161 preparation and fits door thicknesses from 1.375 to 2.25 inches (pre-assembled for 1.625 to 2 inches). It features vandal-resistant solid metal pushbuttons, ADA-compliant fixed levers, a 3-hour UL/ULC fire rating, and DOD compliance. Contact an authorized E.D. Locks dealer at sales@edlocks.com or 1-877-207-6067 for expert installation guidance and warranty support.
Specifications
- Brand: DormaKaba
- Model: LR1076B-05-41
- Lock Type: Mechanical Pushbutton Cylindrical
- Door Thickness: 1.375 to 2.25 inches (35-57 mm)
- Pre-assembled For: 1.625 to 2 inches (41-51 mm)
- Backset: 2.75 inches (70 mm) or 2.375 inches (60 mm)
- Latch Throw: 0.5 inches (13 mm) standard or 0.75 inches (19 mm) optional
- Door Preparation: ASA 161
- Strike: Standard or ASA strike plate
- Lever: Fixed ADA-compliant
- Handing: Factory-handed, not field reversible
- Minimum Stile: 5 inches (127 mm)
- Fire Rating: 3-hour UL/ULC for A labeled doors
- Compliance: ADA, DOD 5220.22M
- Features: Vandal-resistant metal pushbuttons, weather resistant
- Warranty: 3 years
