Description

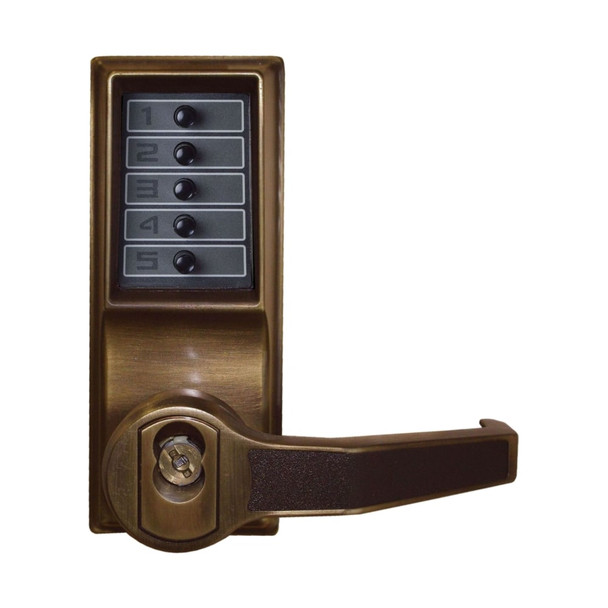

The DormaKaba LR1076C-05-41 is a heavy-duty mechanical pushbutton lock designed for facilities needing keyless access control between public and private areas. Ideal for schools, offices, and commercial buildings, it eliminates key management, battery replacement, and programming complexity while allowing combination changes in seconds without door removal.
This cylindrical lock fits doors 1 3/8" to 2 1/4" thick and installs on wood or metal doors using standard ASA 161 preparation. It features ADA-compliant fixed levers, vandal-resistant metal pushbuttons, and carries a 3-year warranty. As an authorized DormaKaba dealer, E.D. Locks provides expert installation guidance and support at sales@edlocks.com or 1-877-207-6067.
Specifications
- Brand: DormaKaba
- Model: LR1076C-05-41
- Lock Type: Mechanical pushbutton cylindrical lock
- Door Thickness: 1 3/8" to 2 1/4" (35 mm to 57 mm)
- Pre-assembled for: 1 5/8" to 2" (41 mm to 51 mm) doors
- Backset: 2 3/4" or 2 3/8" (70 mm or 60 mm)
- Latch Throw: 1/2" standard, 3/4" optional (13 mm or 19 mm)
- Door Preparation: ASA 161 with additional through holes
- Keypad: Solid metal pushbuttons, vandal resistant
- Levers: Fixed ADA-compliant
- Handing: Factory-handed, not field reversible
- Strike: Standard or ASA strike plate
- Minimum Stile: 5" (127 mm)
- Fire Rating: 3-hour UL/ULC for "A" labeled doors
- Compliance: ADA, D.O.D. 5220.22M supplemental access control
- Features: Weather resistant
- Warranty: 3 years
