Description

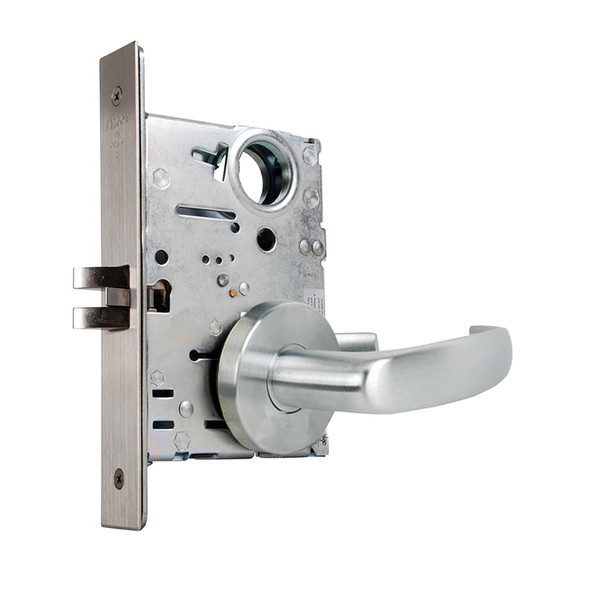

The Falcon MA101 AG 630 mortise lock is a high-performance, affordable security solution for commercial buildings including offices, hospitals, and educational facilities. Built for constant use without failure, this dependable lock features an interchangeable core for quick re-keying and is compatible with SFIC products from other manufacturers, making it ideal for retrofit projects.
The MA101 accommodates standard door thicknesses of 1-3/8" to 2-1/2" with a 2-3/4" backset and meets ANSI/BHMA 156.13 Series 1000 and UL 3-hour A label standards. As an authorized Falcon dealer, E.D. Locks offers expert guidance on keying options, handing, and electrified configurations. Contact our team at sales@edlocks.com or 1-877-207-6067 for personalized support.
Specifications
- Brand: Falcon
- Model: MA101 AG 630
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw with saw-resistant rollers
- Cylinder: Solid brass, 5, 6, or 7-pin standard; 6 or 7-pin on interchangeable core
- Keyways: G keyway on standard cylinder, A keyway on interchangeable core
- Faceplates: 1-1/4" x 8" brass or stainless steel
- Electrified: Available 12 or 24 VDC
- Standards: ANSI/BHMA 156.13 Series 1000, UL 3-hour A label, ANSI A115.1
- Handing: Right hand standard, left hand reversible in field
