Description

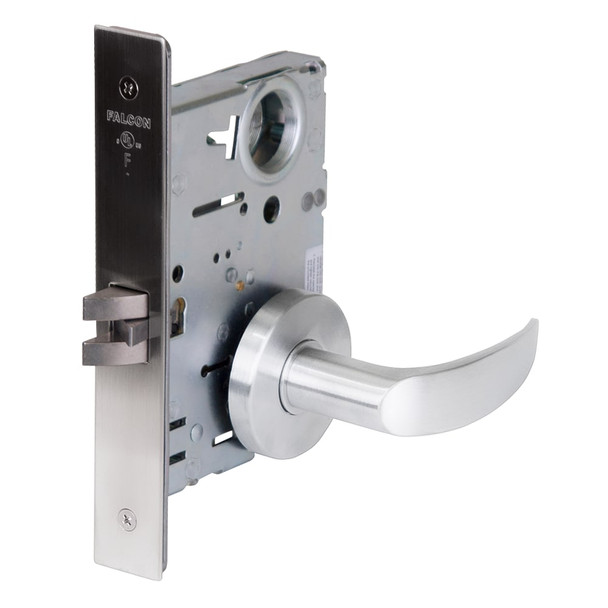

The Falcon MA101 AG 625 is a commercial mortise lock engineered for high-traffic office, hospital, and educational environments. This durable ANSI/BHMA Series 1000 lock combines security with reliability, featuring a stainless steel latch and dead bolt with saw-resistant rollers. Its interchangeable core (SFIC compatible) enables quick re-keying without removing the lock from the door.
Fits standard door thickness of 1-3/8" to 2-1/2" with a 2-3/4" backset. Ships with two nickel silver keys; available in right or left hand, reversible in field. UL-listed for 3-hour fire ratings. As an authorized Falcon dealer, E.D. Locks provides expert specification support and keying assistance. Contact sales@edlocks.com or 1-877-207-6067 for compatibility questions or custom options.
Specifications
- Brand: Falcon
- Model: MA101 AG 625
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Cylinders: Solid brass, 5, 6 or 7-pin standard; 6 or 7-pin I/C available
- Keyways: G (standard cylinder), A (I/C cylinder)
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw, stainless steel with saw-resistant rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel, armored front
- Electrified: Available 12 or 24 VDC
- ANSI/BHMA: 156.13, Series 1000
- UL: 3 hour A label
- Handing: Right hand standard, left hand optional, reversible
