Description

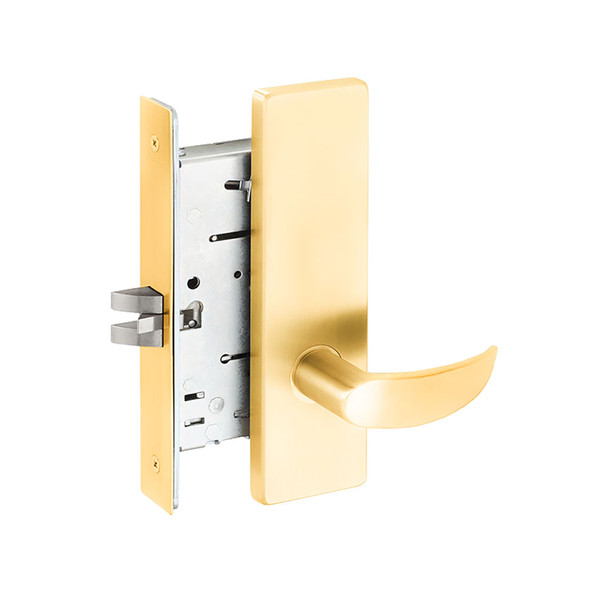

The Falcon MA101 is a commercial-grade mortise lock engineered for high-traffic office, hospital, and education environments. Its interchangeable core (SFIC-compatible) enables fast re-keying without removing the lock body, while the two-piece stainless steel latch and 1-inch throw deadbolt with saw-resistant rollers deliver reliable security and smooth operation under constant use.
The MA101 fits standard door thicknesses from 1-3/8" to 2-1/2" with a 2-3/4" backset and is reversible in the field for either hand. As an authorized Allegion/Falcon dealer, E.D. Locks provides expert guidance on keying, finish selection, and electrified options. Contact sales@edlocks.com or call 1-877-207-6067 for specification verification and project support.
Specifications
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Deadbolt: 1" throw, stainless steel with saw-resistant rollers
- Cylinders: Solid brass, 5, 6, or 7-pin standard; 6 or 7-pin on IC
- Keyways: G-keyway standard (A-keyway on IC)
- Faceplates: 1-1/4" x 8" brass or stainless steel, adjustable bevel
- Handing: Right hand standard; left hand and reversible field options
- Electrified: 12 or 24 VDC available
- Certification: ANSI/BHMA 156.13 Series 1000, UL 3-hour A label, ANSI A115.1 strike
