Description

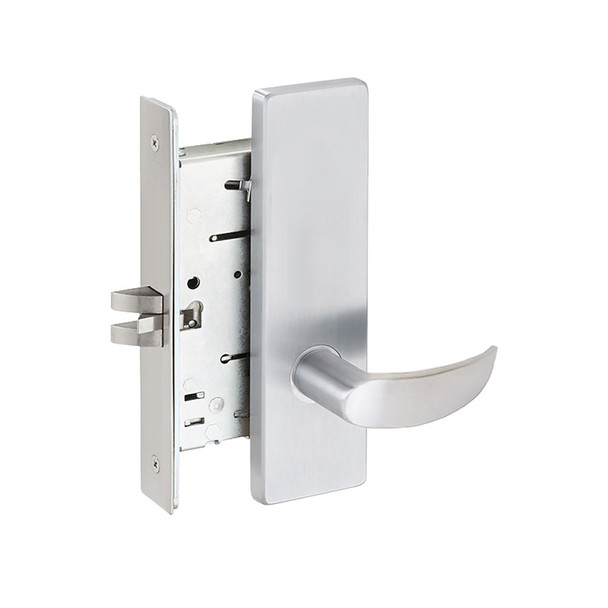

The Falcon MA101 AN 626 is a heavy-duty mortise lock designed for commercial environments including offices, hospitals, and educational facilities. This dependable lock delivers reliable security and withstands constant use without failure, making it ideal for high-traffic doors requiring long-term durability and consistent performance.
The MA101 features an interchangeable core (SFIC-compatible) for quick re-keying and accommodates door thicknesses from 1-3/8" to 2-1/2" with a 2-3/4" backset. Backed by Allegion's reputation, this lock meets ANSI/BHMA 156.13 Series 1000 and carries a 3-hour UL label. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for expert guidance on keying options, handing, and electrified configurations.
Specifications
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, .090" thick
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw with saw-resistant rollers
- Cylinders: Solid brass, 5, 6, or 7-pin (standard) or 6 or 7-pin (I/C)
- Faceplates: 1-1/4" x 8" brass or stainless steel
- Handing: Right hand standard, left hand optional, reversible in field
- Electrified: Available 12 or 24 VDC
- Certifications: ANSI/BHMA 156.13 Series 1000, UL 3 hour A label
