Description

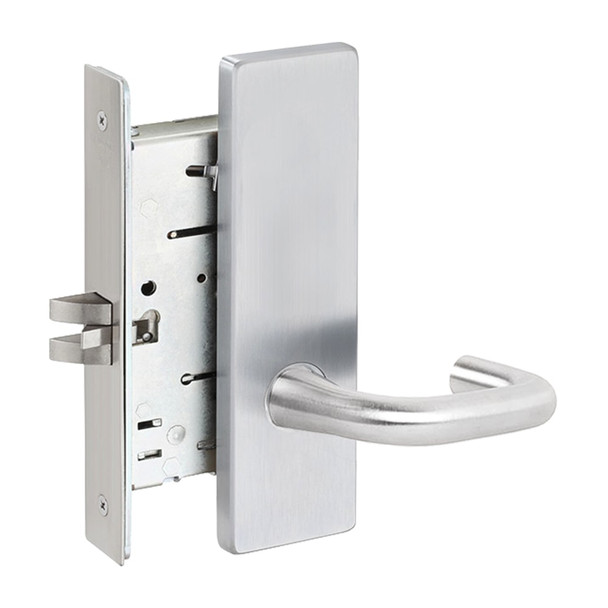

The Falcon MA101 SN 626 is a commercial mortise lock designed for offices, hospitals, education facilities, and other high-traffic environments. Built for durability and reliability, this Series 1000 lock handles constant use without fail and features an interchangeable core for quick re-keying and compatibility with SFIC products from other manufacturers.
The MA101 accommodates door thicknesses from 1-3/8" to 2-1/2" and installs with a 2-3/4" backset. Right-hand handing is standard; left-hand and field-reversible options are available. As an authorized Allegion dealer, E.D. Locks provides expert guidance on keying, compatibility, and installation. Contact our team at sales@edlocks.com or 1-877-207-6067 for personalized support.
Specifications
- Brand: Falcon
- Model: MA101
- Finish: Satin Nickel (626)
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Cylinders: Solid brass, 5, 6, or 7-pin standard; 6 or 7-pin interchangeable core
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw, stainless steel with saw-resistant rollers
- Faceplates: 1-1/4" x 8", armored, adjustable for door bevel
- Electrified: Available in 12 or 24 VDC
- ANSI/BHMA: Series 1000, meets 156.13
- UL Rating: 3 hour A label
- Includes: Two nickel silver keys, thread sealant
