Description

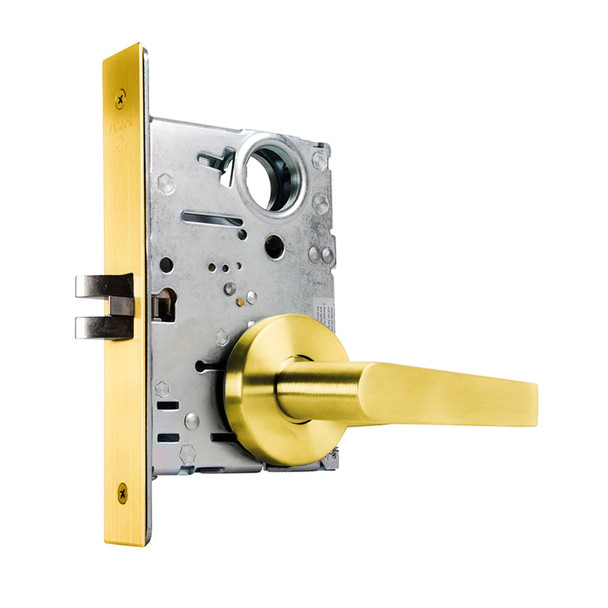

The Falcon MA101 DG 605 is a commercial mortise lock engineered for offices, hospitals, educational facilities, and high-traffic environments. This heavy-duty lock combines security with reliability, featuring a two-piece stainless steel latch bolt, anti-friction design, and a 1 inch throw dead bolt with saw-resistant rollers. It solves the need for durable, dependable access control that withstands constant daily use without compromise.
The MA101 accepts interchangeable cores (SFIC compatible) for quick re-keying and supports door thicknesses from 1 3/8 inch to 2 1/2 inch with a 2 3/4 inch backset. It meets ANSI/BHMA 156.13 Series 1000 and carries a UL 3-hour A label. As an authorized Falcon dealer, E.D. Locks provides expert guidance on keying options, finish selection, and installation. Contact our sales team at sales@edlocks.com or 1-877-207-6067 for personalized support and specifications.
Specifications
- Door Thickness: 1 3/8 inch to 2 1/2 inch
- Backset: 2 3/4 inch
- Case: Cold formed steel, zinc dichromate plated, 0.090 inch thick
- Hubs: Hardened steel
- Cylinders: Solid brass, 5, 6 or 7-pin standard; 6 or 7-pin interchangeable core
- Keyways: G keyway standard cylinder, A keyway interchangeable core
- Latch Bolt: Two-piece stainless steel, 3/4 inch projection
- Dead Bolt: 1 inch throw, stainless steel with saw-resistant rollers
- Faceplates: 1 1/4 inch x 8 inch, brass or stainless steel
- Standards: ANSI/BHMA 156.13 Series 1000, UL 3-hour A label
- Electrified: 12 or 24 VDC available
- Keying: Two nickel silver keys included
