Description

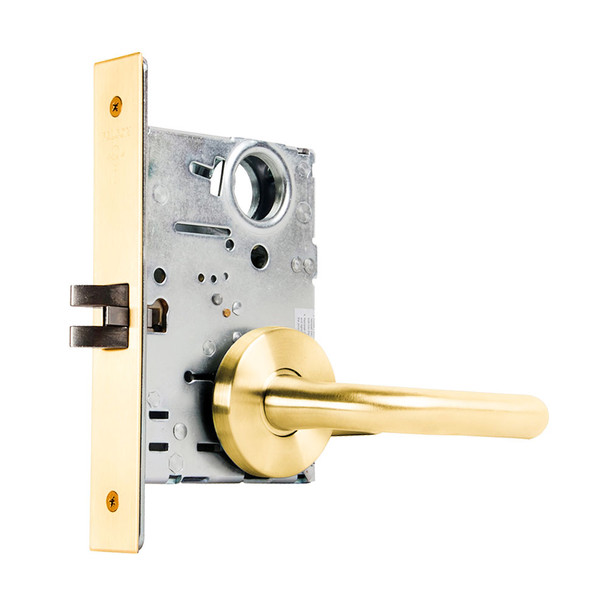

The Falcon MA101 SG 605 is a heavy-duty mortise lock designed for commercial environments including offices, hospitals, and educational facilities. This durable lock combines security with reliability, featuring an interchangeable core for quick re-keying and compatibility with SFIC products. Its two-piece stainless steel latch and saw-resistant roller deadbolt withstand constant daily use without compromise.
The MA101 accommodates door thicknesses from 1-3/8" to 2-1/2" with a standard 2-3/4" backset and meets ANSI/BHMA 156.13 Series 1000 and UL 3-hour ratings. Available in right or left hand, reversible in the field. E.D. Locks is an authorized Falcon dealer; contact our team at sales@edlocks.com or 1-877-207-6067 for keying options, finish selection, and expert guidance on your project.
Specifications
- Brand: Falcon
- Model: MA101 SG 605
- Finish: SG (Satin Stainless Steel)
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Deadbolt: 1" throw with saw-resistant rollers
- Cylinders: Solid brass, 5, 6, or 7-pin options
- Keyways: G keyway (standard cylinder), A keyway (interchangeable core)
- Handing: Right hand standard, left hand optional, reversible
- Strike: Brass or stainless steel, ANSI A115.1 compliant
- Electrified: Available 12 or 24 VDC
- Certification: ANSI/BHMA 156.13 Series 1000, UL 3-hour A label
